ALINX AMD Xilinx Kintex UltraScale+ XCKU15P FPGA SoM System-on-Module

Overview

Product Description

The ACKU15 FPGA System-on-Module(SoM) combines high-end AMD Xilinx Kintex UltraScale+™ series XCKU15P device with fast DDR4 SDRAM, parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system.

Applications

Data Center
● Network Acceleration
● Storage Acceleration
Industrial, Science, Medical
● Medical Imaging Backhaul
● Machine Vision
Wired Communications
● PON Access
● Optical Transport Network
Wireless Communications
● Radio
● Basebandn

Key Features

● AMD/Xilinx Kintex Ultrascale+™ :
◆ 16nm FinFET FPGA fabric
◆ Up to 60% reduction in power consumption compared to 7 Series FPGAs
◆ More than 2 x faster system-level performance per watt compared to Kintex 7 FPGAs● Pluggable module with 4 x Samtec board-to-board connectors
● 10 GByte (80-bit) DDR4 SDRAM
● 2 x 64MB QSPI Flash
● 1 x PCIe® Gen3 ×16
● Gigabit transceivers
◆ 32 x GTH, up to 16.3 Gbps
◆ 24 x GTY, up to 28.21 Gbps● User I/Os
◆ 344 FPGA I/Os (88 HD + 256 HP)● Work temperature range of -40°C to +85°C
● 12V single supply
● Dimension: 80 x 80mm form factor

Product Information

Specifications
What's Inside

Module Features

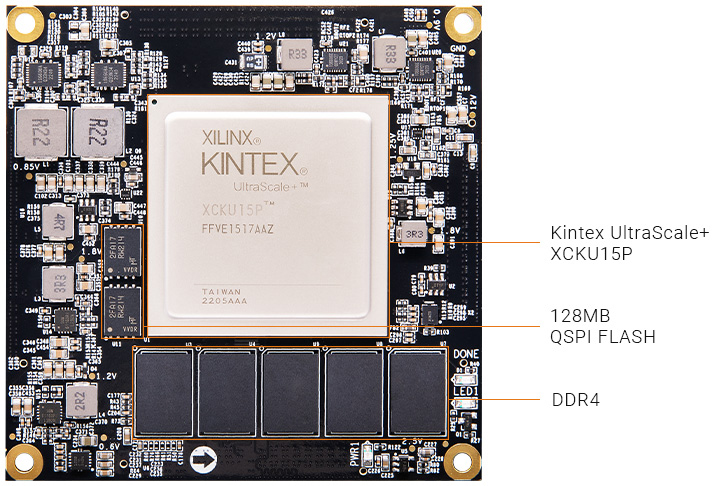

Featuring the AMD/Xilinx Kintex Ultrascale+™ XCKU15P-2FFVE1517I

* If you want to design a base board based on this Kintex Ultrascale+™ FPGA System-on-Module, you need to purchase ADM6-60-01.5-L-4-2-A-TR high-speed Board to Board Connectors, 240 Pins, you also need to purchase FAN8080 Heatsink Kit, the FAN8060 Heatsink Kit is an optimal cooling solution for ALINX FPGA and modules – it is low-profile and covers the whole module surface.

* We have Kintex Ultrascale+™ development boards AXKU15 that uses this Kintex Ultrascale+™ module, to get started with development straight out of the box.

Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

ALINX AMD Xilinx Kintex Ultrascale+™ XCKU15P FPGA System-on-Module/SoM

Kintex Ultrascale+™ SoM	1

Product Selection Matrix

Product Matrix

Product Model	Preferred Model	FPGA Devices	DDR4 SDRAM	QSPI Flash	GTH	GTY	Temp. Range	USD Price
ACKU15-D	√	XCKU15P-2FFVE1517I	10 GB	2 x 64 MB	32	24	-40°C~+85°C	3145
ACKU15		XCKU15P-2FFVE1517I	10 GB	2 x 64 MB	32	24	-40°C~+85°C	3894
ACKU15S	√	XCKU15P-2FFVE1517I	5 GB	2 x 64 MB	32	24	-40°C~+85°C	2995
ACKU11		XCKU11P-2FFVE1517I	4 GB	2 x 64 MB	32	20	-40°C~+85°C	TBD

1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.

We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
