ALINX AMD Xilinx Kintex UltraScale+ XCKU15P FPGA development board

Overview

Product Description

The AXKU15 FPGA development board equipped with the AMD/Xilinx Kintex UltraScale+™ series device, delivers standout performance with fast DDR4 SDRAM, QSPI Flash, PCIe, QSFP28, FMC HPC, Gigabit Ethernet.

Compatible with a multitude of FMC board (data acquisition, motor control, display camera interfaces, software defined radio), Provide high-speed communication (PCIe, QSFP28).

Applications

● PON Access
● Mobile Backhaul
● Data Center Network Acceleration

Key Features

System-on-Module
● AMD/Xilinx Kintex Ultrascale+™:
◆ 16nm FinFET FPGA fabric
◆ Up to 60% reduction in power consumption compared to 7 Series FPGAs
◆ More than 2x faster system-level performance per watt compared to Kintex 7 FPGAs
● Pluggable module with 4 x Samtec board-to-board connectors
● 5 GByte (80-bit) DDR4 SDRAM
● 2 x 64 MB QSPI Flash
Base Board
● 2 x FMC HPC (FMC1 58 pairs lvds ios + 8 pairs GTH / FMC2 34 pairs lvds ios + 8 pairs GTH)
● 1 x PCIe® Gen3 ×16
● 2 x QSFP28 (QSFP28 is 100Gbps)
● 1 x Gigabit Ethernet
● 1 x UART(USB to UART)
● 2 x 4 lane MIPI
● 1 x MicroSD
● 1 x 512 Byte EEPROM 24LC04
● 1 x Temperature sensor LM75
● LED (1 x PWR + 1 x RXD + 1 x TXD + 4 x LED) KEY (4 x KEY)
● 12V single supply
● Dimensions: 226 x 111 mm form factor

Product Information

Specifications
What's Inside

Board Features

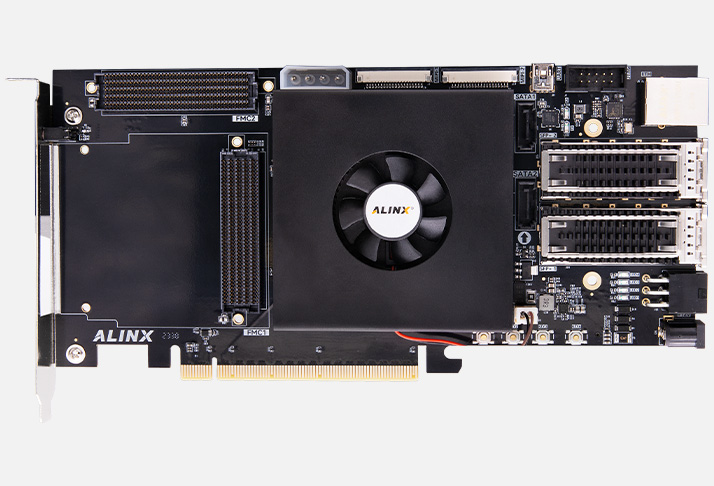

Featuring the AMD/Xilinx Kintex Ultrascale+™ XCKU15PFFVE1517

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any AMD/Xilinx Kintex Ultrascale+™ based application.

* The AXUKU15 development board consists of a Kintex Ultrascale+™ module and base board. If you want to purchase Kintex Ultrascale+™ module (ACKU5) separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

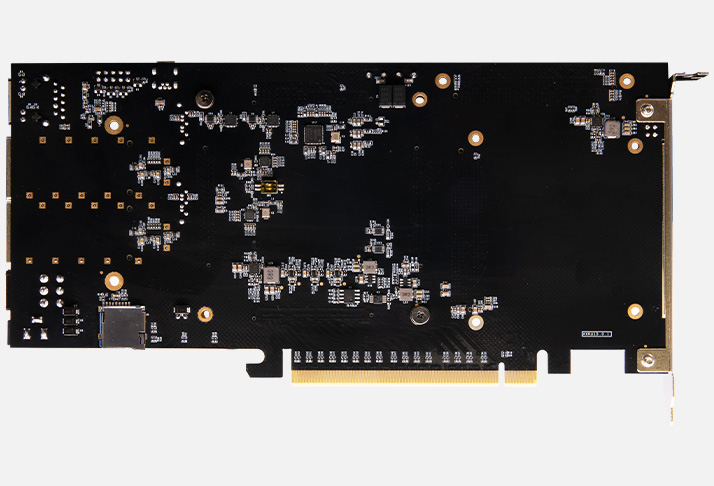

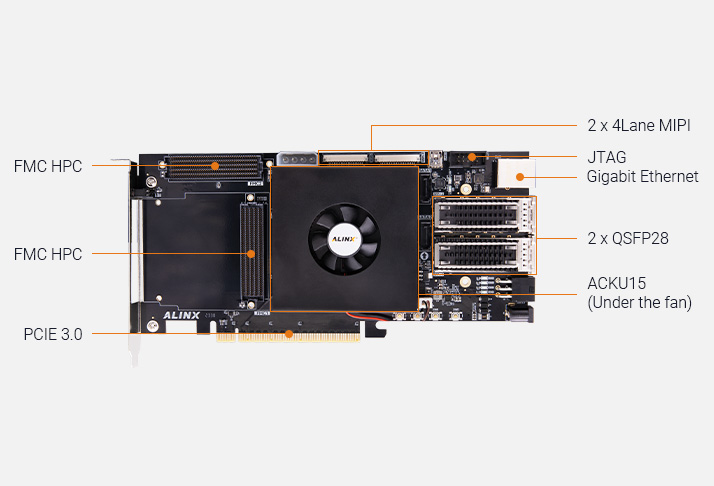

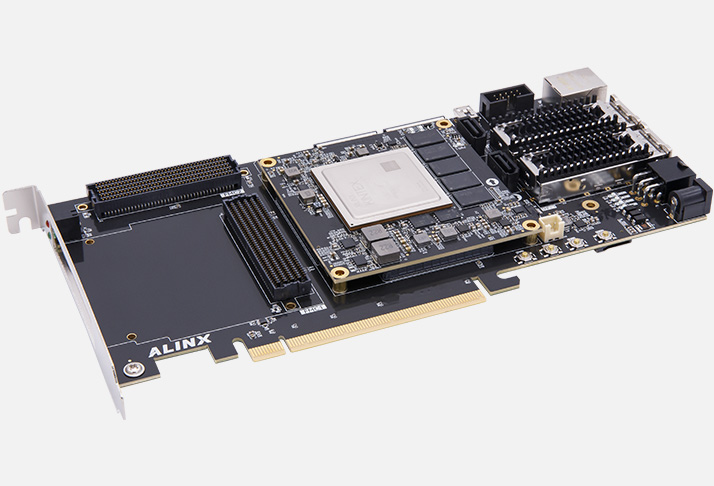

ALINX AMD Xilinx Kintex Ultrascale+™ XCKU15P FPGA development board and Some accessories

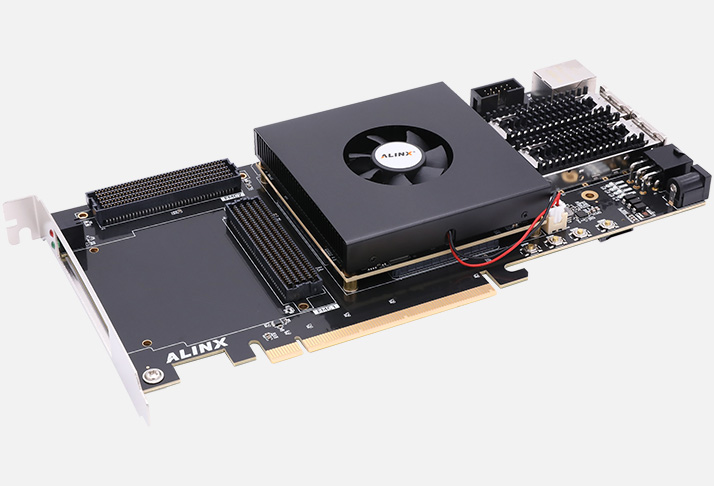

The FAN8060 Heatsink Kit is an optimal cooling solution for FPGA devices – it is low-profile and covers the whole XCKU15P device surface.

System-on-Module	1	Base Board	1
Mini USB Cable	1	USB Downloader Cable / set	1
12V Power Adapter	1	PCle Fence	1
Heatsink Kit (preinstalled)	1

Product Selection Matrix

Product Matrix

Product Model	Preferred Model	FPGA Devices	DDR4 SDRAM	QSPI Flash	GTH	GTY	USD Price
AXKU15	√	XCKU15PFFVE1517	5 GB	2 x 64 MB	32	24	3962

1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.

We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
