AC7Z020

AC7Z020 SoM based on AMD Zynq™ 7000 SoC XC7Z020

The AC7Z020 SoC module combines AMD Zynq™ 7000 SoC-series device with fast DDR3 SDRAM, QSPI Flash, applied to Industrial, Medical, Automotive, Video and Image Processing, Control & Instrumentation and Communication, etc.

Unit price

$ 145

Overview

ALINX AMD Xilinx Zynq 7000 SoC XC7Z020 SoM system-on-module AC7Z020 7Z020

Product Description

The AC7Z010/AC7Z020 System-on-Chip (SoC) System-on-Module (SoM) combines high-end AMD/Xilinx Zynq™ 7000 SoC-series device with fast DDR3 SDRAM, parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system.

Applications



Key Features

Product Information

Module Features

Featuring the AMD/Xilinx Zynq™ 7000 SoC XC7Z020-2CLG400I

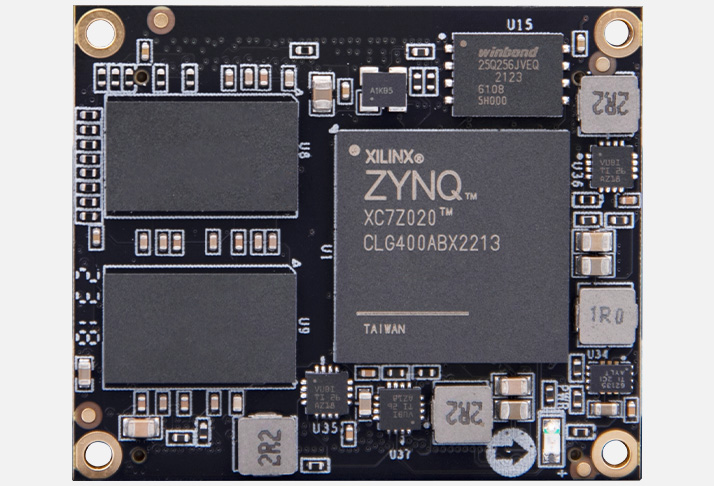

ALINX AMD Xilinx Zynq 7000 SoC XC7Z020 SoM system-on-module AC7Z020 7Z020
ALINX AMD Xilinx Zynq 7000 SoC XC7Z020 SoM system-on-module AC7Z020 7Z020


* If you want to design a base board based on this Zynq™ 7000 SoC System-on-Module, you need to purchase AXK6A2337YG high-speed Board to Board Connectors, 120 Pins.

* We have Zynq™ 7000 SoC development boards AX7Z020B that uses this Zynq™ 7000 SoC module, to get started with development straight out of the box.

Please check the Relevant Products at the bottom of the page and click to learn more details.

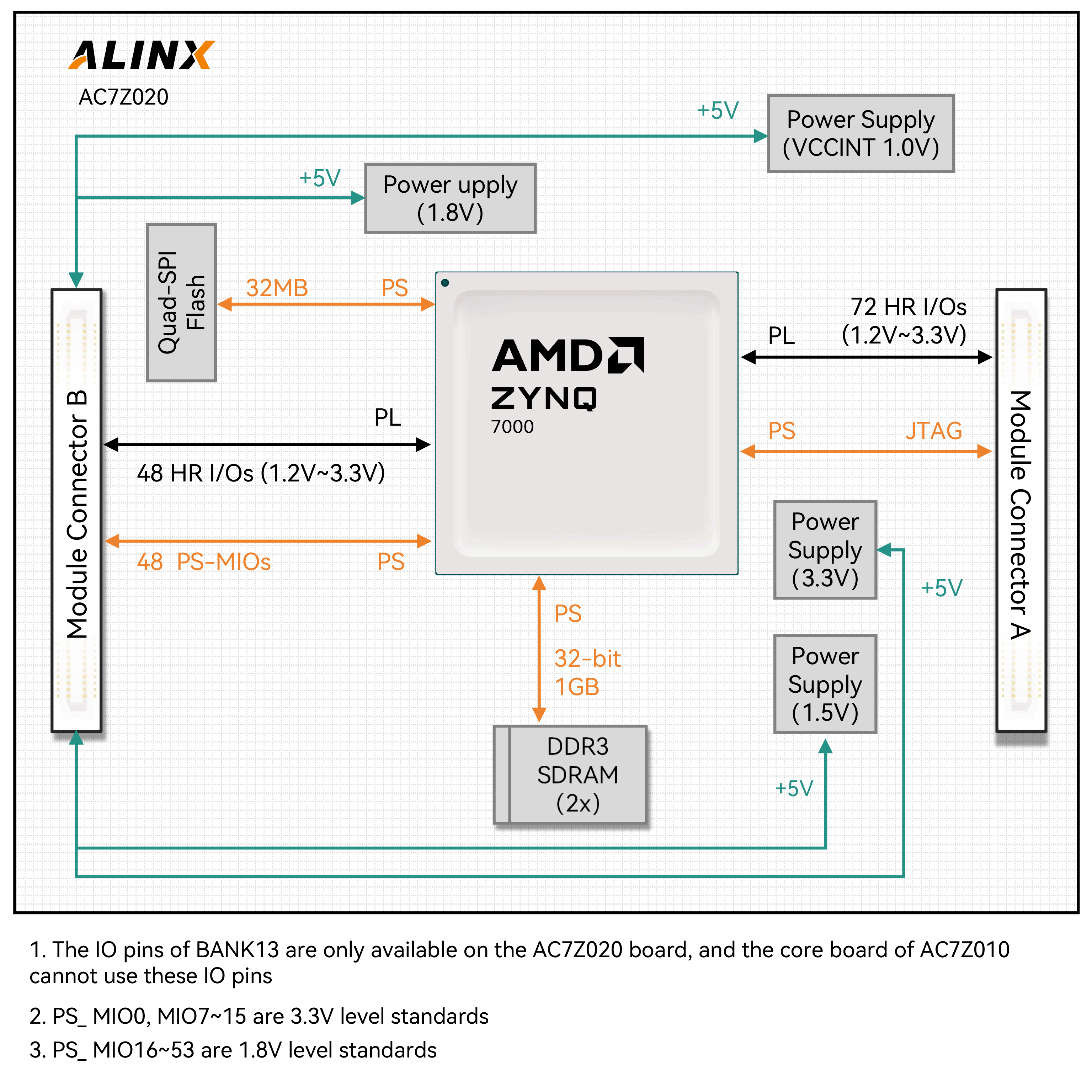

Module Architecture


Click on the image to view a larger image.


Not all features are available simultaneously – please check the documentation for any applicable constraints.

All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.

ALINX provides product user manuals for each product.

What's Inside the Box

ALINX AMD Xilinx Zynq™ 7000 SoC XC7Z020 System-on-Module/SoM

Zynq 7000 SoC SoM1


Product Selection Matrix

Product Matrix

Product ModelPreferred ModelZynq 7000 SoCDDR3 SDRAM (PS)QSPI Flash

Temp. Range

USD Price

AC7Z010XC7Z010-1CLG400I512 MB32 MB-40°C~+85°C132
AC7Z020XC7Z020-2CLG400I1 GB32 MB-40°C~+85°C185


1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.


We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.

Documentations

Related Products
