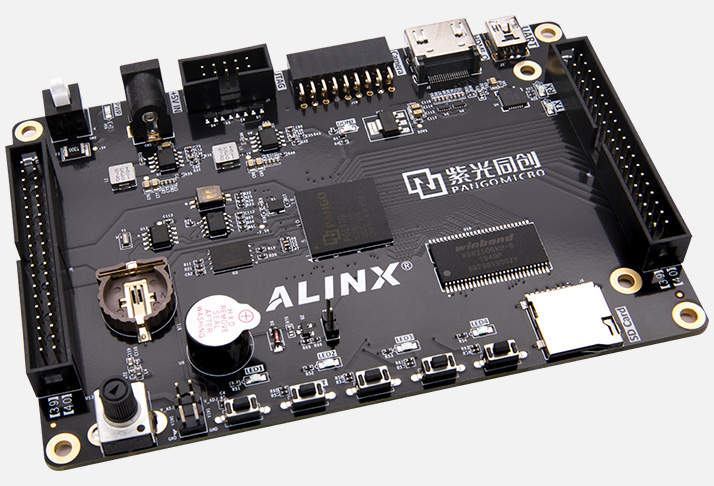

ALINX PGL12G FPGA Development Board with Pango Logos

Overview

Product Description

The PGL12G FPGA Development Board is PANGO Logos series device, delivers standout performance with SDRAM, QSPI Flash, HDMI, UART.

Applications

● Communication
● Industrial control

Key Features

● PANGO Logos PGL12G:◆ 40 nm FPGA fabric
● 32 MB SDRAM
● 8 MB QSPI Flash
● 1 x HDMI out
● 1 x UART (USB to UART)
● 1 x Camera
● 1 x Buzzer
● 1 x MicroSD
● RTC
● LED (1 x DONE + 4 x LED) KEY(4 x KEY)
● 2 x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
● 1 x AD in
● 5V single supply
● Dimensions: 130 x 90 mm form factor

Product Information

Specifications
What's Inside

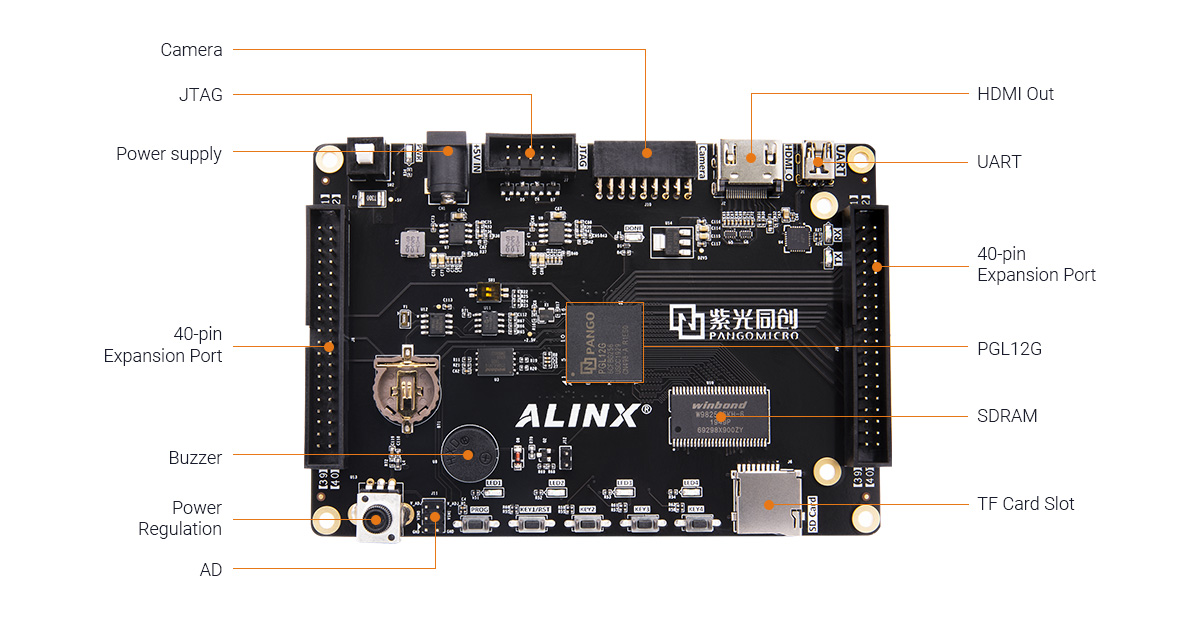

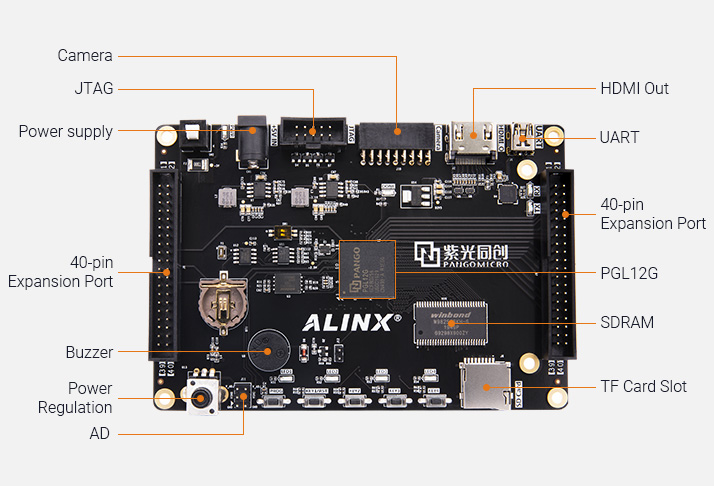

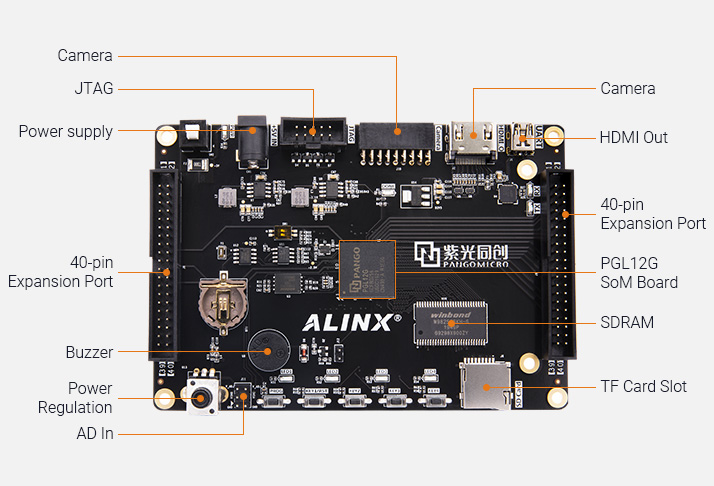

Development Board Features

Featuring the PANGO Logos PGL12G-6CFBG256 Adaptive

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any PANGO Logos based application.

What's Inside the Box

ALINX PANGO Logos PGL12G development board and Some accessories

Development Board	1	USB Downloader Cable / set	1
Mini USB Cable	1	USB to power cord	1

Product Selection Matrix

Product Matrix

Product Model	Preferred Model	FPGA Devices	DDR3 ECC SDRAM	QSPI Flash	USD Price
PGL12G	√	PGL12G-6CFBG256	32MB	8 MB	43

1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.

We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
