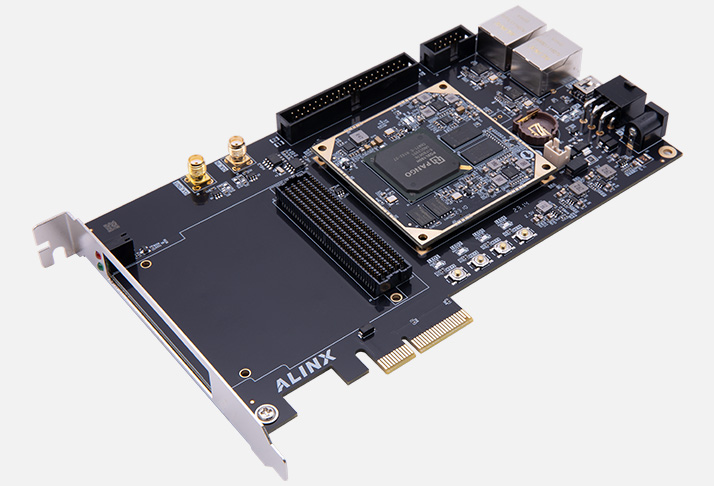

ALINX AXP110 FPGA Development Board with Pango Logos2 PG2L100H

Overview

Product Description

The AXP110 FPGA Development Boar is PANGO Logos2 series device, delivers standout performance with DDR3 SDRAM, QSPI Flash, PCIe, FMC LPC, Gigabit Ethernet.

Applications

● Communication
● Image and video processing
● Data analysis
● Network information security
● Instrumentation

Key Features

System-on-Module
● PANGO Logos-2 PG2L100H:◆ 28 nm FPGA fabric
◆ HSST 6.6 Gbps Transceivers
● Pluggable module with 4 x Panasonic board-to-board connectors
● 1 GByte (32-bit) DDR3 SDRAM
● 2 x 16 MB QSPI Flash

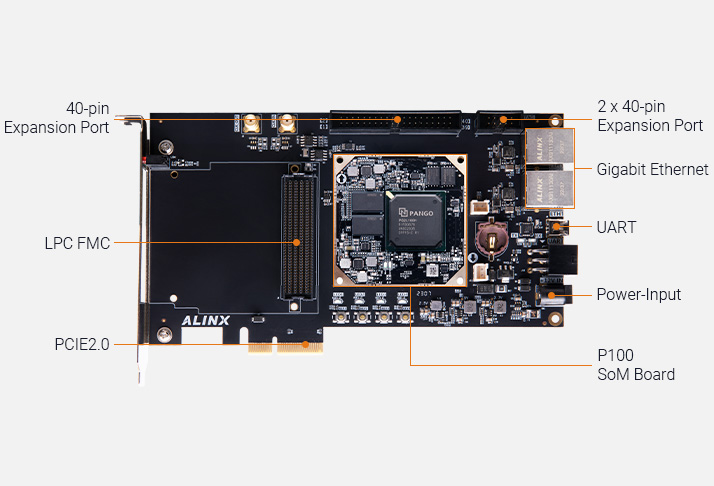

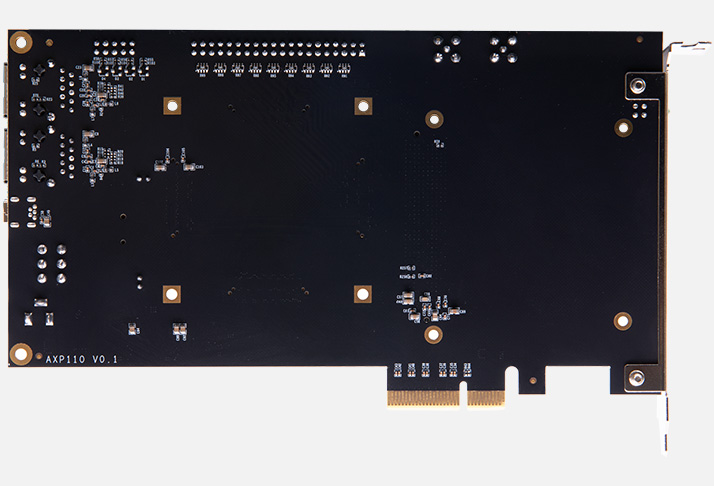

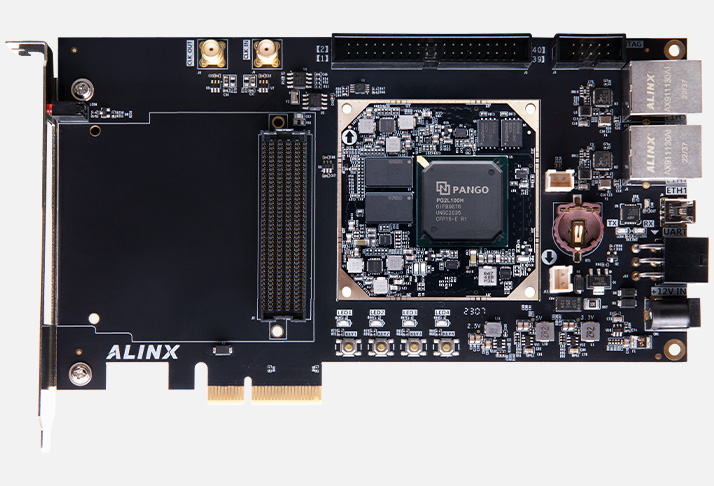

Base Board
● 1 x PCIe® Gen2 ×4
● 2 x Gigabit Ethernet
● FMC LPC (34 pairs lvds ios )
● 1 x UART (USB to UART)
● 2 x SMA
● 1 x 512 Byte EEPROM 24LC04
● 1 x Temperature sensor LM75A
● 1 x RTC DS1338(Real-time Clock)
● 1 x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
● LED(1 x PWR + 4 x LED) + KEY (1 x reset + 2 x KEY)
● 12V single supply
● Dimensions: 188.1 x 110.82 mm form factor

Product Information

Specifications
What's Inside

Development Board Features

Featuring the PANGO Logos2 PG2L100H-6IFBG676 Adaptive

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any PANGO Logos2 based application.

* The AXP110 development board consists of a P100 SoM and base board. If you want to purchase P100 SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

ALINX PANGO Logos PG2L100H development board and Some accessories

System-on-Module	1	Base Board	1
Mini USB Cable	1	USB Downloader Cable / set	1
12V Power Adapter	1	PCIe Fence	1

Product Selection Matrix

Product Matrix

Product Model	Preferred Model	FPGA Devices	DDR3 ECC SDRAM	QSPI Flash	USD Price
AXP110	√	PG2L100H-6IFBG676	1 GB	32 MB	277

1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.

We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
