ALINX AMD Xilinx Artix UltraScale+ XCAU15P FPGA development board

Overview

Product Description

The AXAU15 FPGA development board equipped with the AMD/Xilinx Artix UltraScale+™ series device, delivers standout performance with fast DDR4 SDRAM, QSPI Flash, PCIe, FMC HPC, Gigabit Ethernet.

Compatible with a multitude of FMC board (data acquisition, motor control, display camera interfaces, software defined radio), Provide high-speed communication (PCIe).

Applications

● Machine vision
● 4K UHD Video Converter(SDI to HDMI)
● Secure networking

Key Features

System-on-Module
● AMD/Xilinx Artix Ultrascale+™:
◆ 16nm FinFET FPGA fabric
◆ Advanced FPGA DSP architecture, optimized for fixed-point and floating-point calculations
● Pluggable module with 4 x Panasonic board-to-board connectors
● 1 GByte (16-bit) DDR4 SDRAM
● 32 MB QSPI Flash

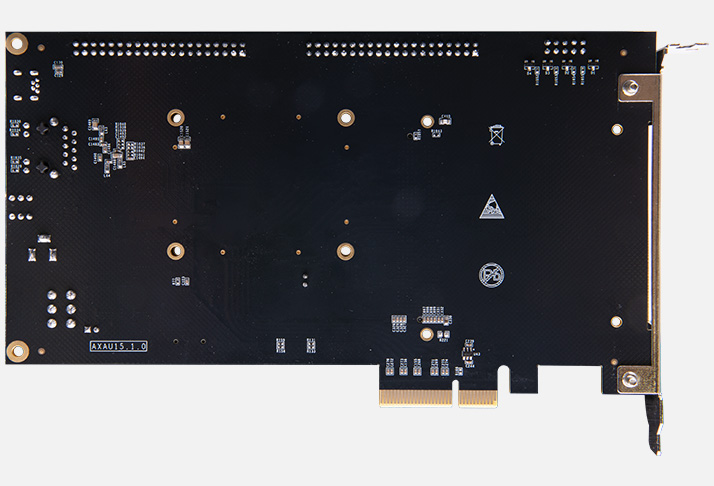

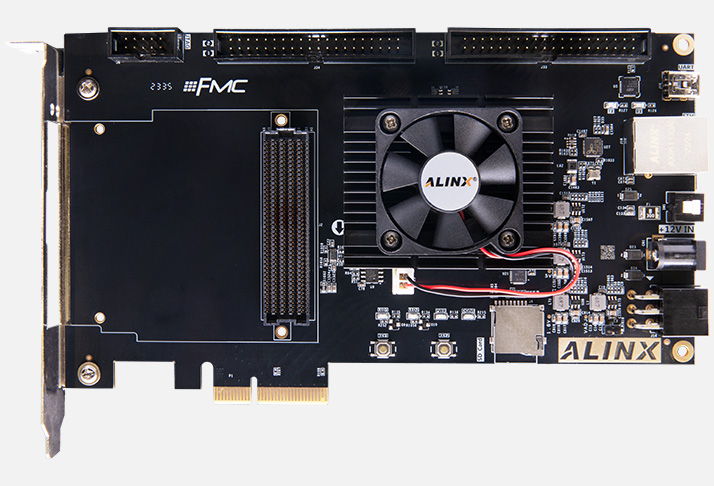

Base Board

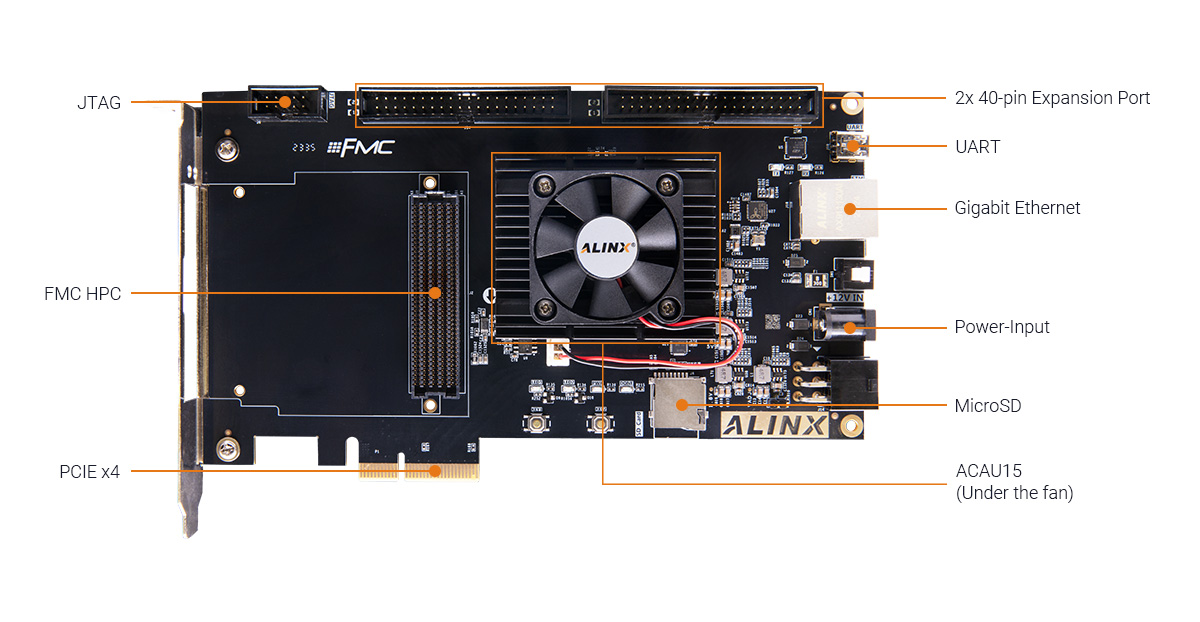

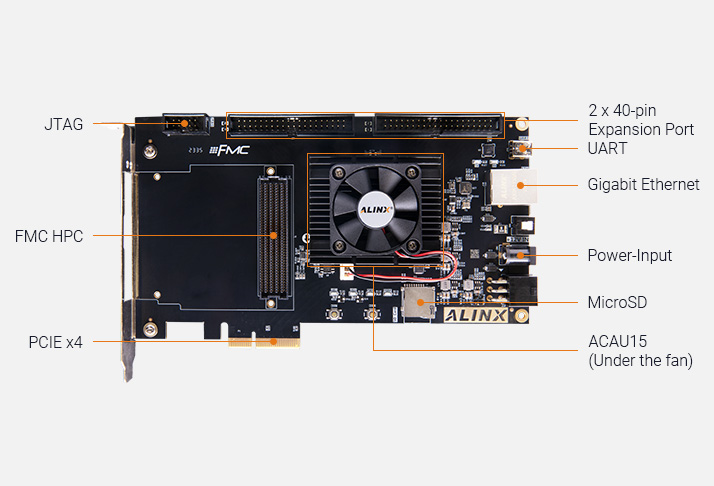

● 1 x FMC HPC (37 pairs lvds ios + 8 pairs GTH)
● 1 x PCIe® Gen4 ×4
● 1 x Gigabit Ethernet
● 1 x UART(USB to UART)
● 2 x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
● 1 x MicroSD
● 1 x 512 Byte EEPROM 24LC04
● 1 x Temperature sensor LM75
● LED (1 x PWR + 1 x DONE + 1 x RXD + 1 x TXD + 2 x LED)
● KEY (2 x KEY)
● 12V single supply
● Dimensions: 188 x 106 mm form factor

Product Information

Specifications
What's Inside

Board Features

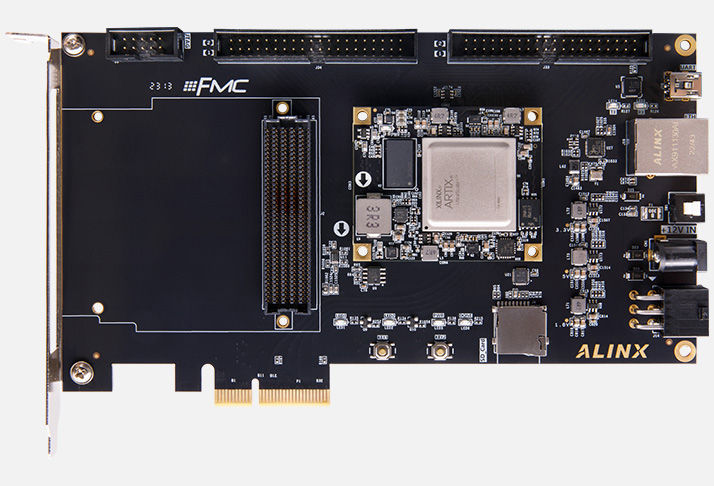

Featuring the AMD/Xilinx Artix Ultrascale+™ XCAU15P-2FFVB676I

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any AMD/Xilinx Artix Ultrascale+™ based application.

* The AXAU15 development board consists of a Artix Ultrascale+™ module and base board. If you want to purchase Artix Ultrascale+™ module (ACKU15) separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

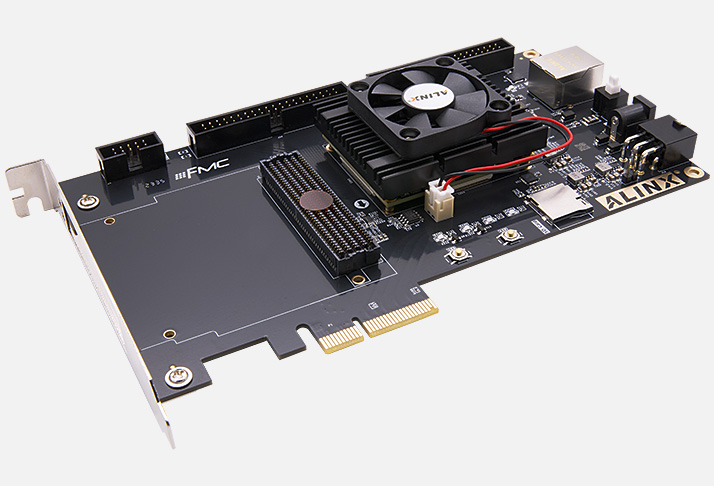

ALINX AMD Xilinx Artix Ultrascale+™ XCAU15P FPGA development board and Some accessories

The FAN6050 Heatsink Kit is an optimal cooling solution for FPGA devices – it is low-profile and covers the whole XCAU15P device surface.

System-on-Module	1	Base Board	1
Mini USB Cable	1	USB Downloader Cable / set	1
12V Power Adapter	1	PCle Fence	1
Heatsink Kit (preinstalled)	1

Product Selection Matrix

Product Matrix

Product Model	Preferred Model	FPGA Devices	DDR4 SDRAM	QSPI Flash	GTH	USD Price
AXAU15	√	XCAU15P-2FFVB676I	1 GB	32 MB	12	528

1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.

We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
