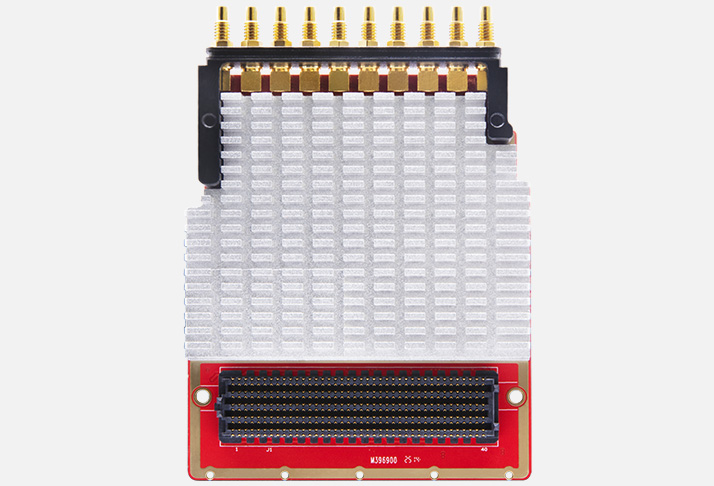

The FH9600 is a high-performance, wideband FMC radio frequency module based on the ADRV9026 transceiver, covering 75 MHz to 6 GHz with 4Tx/4Rx channels, offering up to 450 MHz TX and 200 MHz RX bandwidth for applications in 5G, MIMO, radar, and communications.
Unit price
$ 3449
The FH9600 is a high-performance, wideband FMC radio frequency module based on the ADRV9026 transceiver, covering 75 MHz to 6 GHz with 4Tx/4Rx channels, offering up to 450 MHz TX and 200 MHz RX bandwidth for applications in 5G, MIMO, radar, and communications.
● 3G/4G/5G TDD and FDD
● communications
● Macro and small cell base stations
● Portable test equipment
● Massive multiple input, multiple output (MIMO)
● Phased array radar
Click on the image to view a larger image.
Not all features are available simultaneously – please check the documentation for any applicable constraints.
All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.
ALINX provides product user manuals for each product.
| FMC Cards | 1 |
|---|
| Product Model | USD Price |
|---|---|
| FH9600 | 3449 |
