AN9134

AN9134 1080P@60Hz HDMI Video Output Module SiI9134

Use on SoC & FPGA development boards

Unit price

$ 29
Order Contact

Overview


Product Description

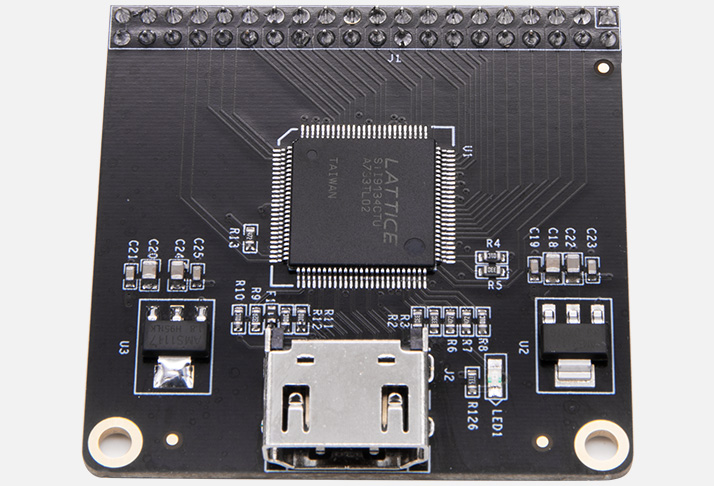

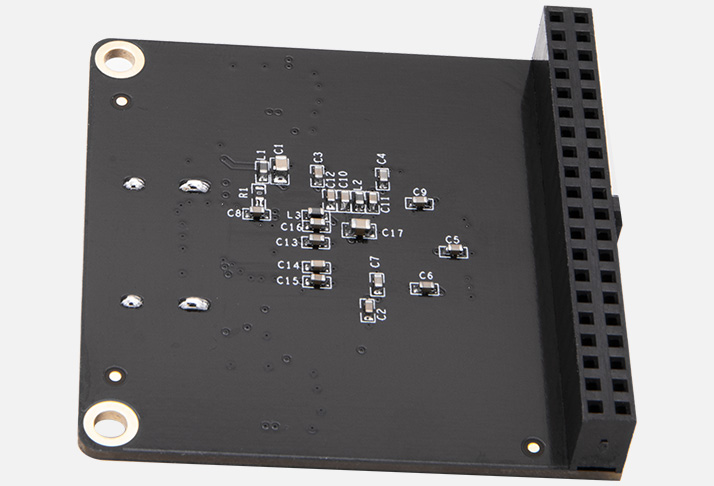

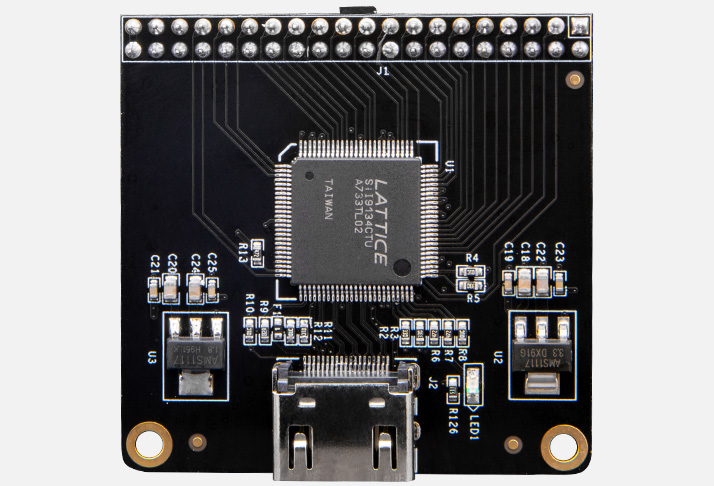

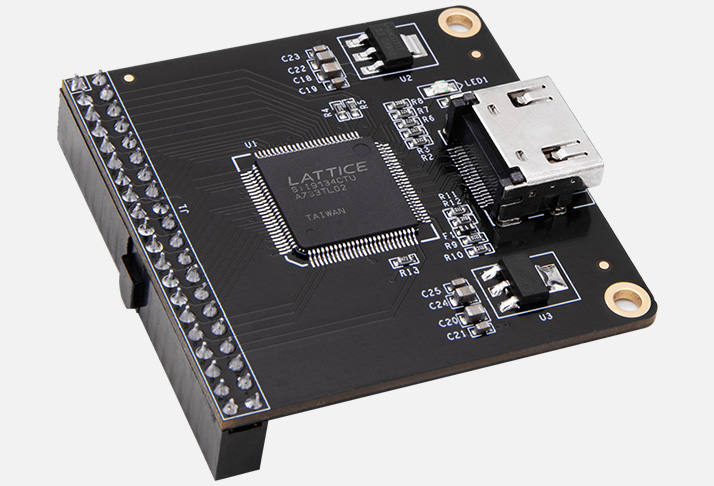

The AN9134 HDMI display output module uses Silion Image's SIL9134 HDMI (DVI) encoding chip, which supports up to 1080P@60Hz Output, supports 3D output. The module has a 40 pin busbar for connecting to the FPGA development board, and an HMDI connector for outputting HDMI video signals to the HDMI display.

Product Information

Parameter Description

  • ● Chip Model: SiI9134
    ● Output interface: 1 HDMI standard output interface
    ● Data format: RGB888 24bit
    ● Display parameter configuration: I2C interface configuration
  • ● Module interface: 40 pin 2.54mm spacing row seats, facing downwards
    ● Working Temperature: 0°C to 70°C
    ● Dimensions: 51 x 50mm form factor

What's Inside the Box

AN91341


Product Selection Matrix

Product Matrix

Product Model

USD Price

AN913429

Documentations
