The AXRF67 development board, based on the AMD Zynq™ UltraScale+™ RFSoC DFE ZU67DR, is an ideal platform for adaptive radio development. It accelerates prototype evaluation for 5G New Radio (5G NR), radar, and a wide range of high-performance RF applications.
Unit price
$ 9707In stock:
＞1, ready to ship in 60 workdays

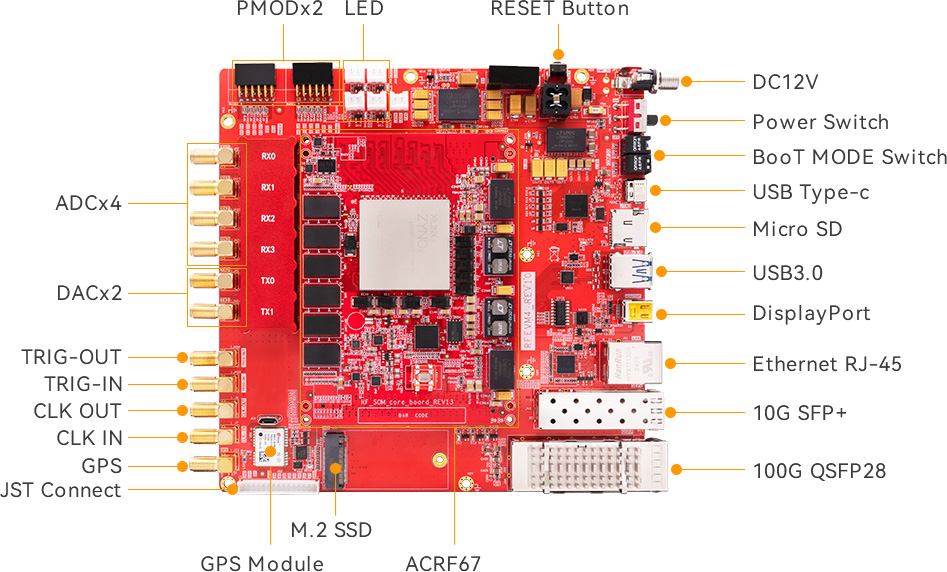

The AXRF67 development board is built around the AMD Xilinx Zynq UltraScale+ RFSoC ZU67DR. It provides 4 physical RF-ADC interfaces (2.95GSPS) and 2 physical RF-DAC interfaces (10GSPS), leveraging the chip's full 8-channel capability while offering optimized connectivity for target applications. It supports direct RF sampling below 7.125GHz, delivering a comprehensive solution for 5G communication, radar systems, and wired access testing from teaching labs to research verification.
● 5G FR1/FR2 Baseband & RF Systems
● Wideband Spectrum Monitoring & Analysis
● Phased-Array Radar / Digital Array Radar (DAR)
● Satellite Communications
● Multi-channel RF Signal Processing (for SDR, test equipment)
● Test & Measurement (T&M) Systems
Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any AMD/Xilinx Zynq™ UltraScale+™ RFSoC based application.
* The AXRF47 development board consists of a ACRF67 SoM and base board. If you want to purchase ACRF67 SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.

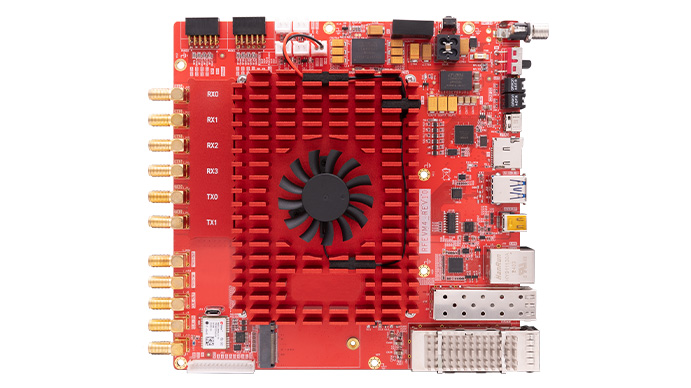

Heatsink Kit is an optimal cooling solution for ALINX FPGA and SoC modules – it is low-profile and covers the whole module surface.
| System-on-Module | 1 | Base Board | 1 |
|---|---|---|---|
| Heatsink Kit (preinstalled) | 1 | 12V power supply | 1 |
| SMA-SMA（20cm） | 4 | SMA-SMA（50cm） | 2 |
| 5G omnidirectional antenna and base | 4 | USB3.0-cable | 1 |
| Ethernet cable | 1 | TF card | 1 |
| TF card reader | 1 | CD supplementary materials | 1 |
| Product Model | Preferred Model | FPGA Devices | DDR4 SDRAM (PS) | DDR4 SDRAM (PL) | QSPI Flash | RF-ADC | RF-DAC | GTY | GTR | USD Price | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AXRF47 | √ | XCZU47DR-2FFVE1156I | 4 GB | 2 GB | 128 MB | 8 | 8 | 8 | 4 | 13879 | |||||||
| AXRF42 | XCZU42DR-2FFVE1156I | 4 GB | 2 GB | 128 MB | 8 | 8 | 8 | 4 | TBD | ||||||||
| AXRF43 | XCZU43DR-2FFVE1156I | 4 GB | 2 GB | 128 MB | 8 | 8 | 8 | 4 | TBD | ||||||||
| AXRF67 | √ | XCZU67DR-2FFVE1156I | 4 GB | 2 GB | 128 MB | 8 | 8 | 8 | 4 | 9707 |
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
