FH9681 4-channel 1GSPS sampling rate 14 bit AD acquisition FMC card module based on VITA57.1 standard | FPGA Mezzanine Card

Overview

Product Description

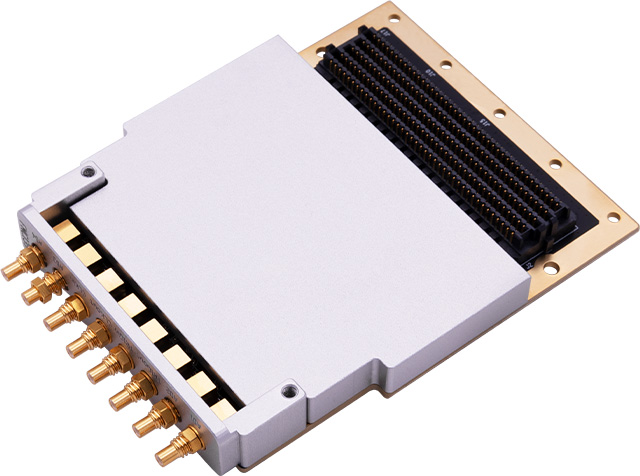

FH9681 is an FMC card compliant with the VITA57.1 standard, featuring a JESD204B (Subclass 1) interface. This subcard provides 4 channels of 14-bit ADC acquisition with a fixed sampling rate of 1 GSPS. The ADC device utilizes the GMS011 chip from CETC24, which is fully compatible with the AD9680-1000 from Analog Devices Inc. (ADI), offering a full-power -3 dB analog input bandwidth of up to 2 GHz. The interface between the ADC and the FPGA host is established via 8 high-speed serial GTX transceivers. The board features DC coupling, supporting analog signal input from DC to 2 GHz with an amplitude range of 2 Vpp

This board is mainly designed for applications such as communication and wireless infrastructure, radar, broadband communication, millimeter wave communication, and automatic testing equipment

Applications

● Radar and smart antennas, wireless infrastructure
● Broadband RF signal processing, signal generator
● Communication testing equipment
● Autonomous driving RADAR

Key Features

ADC Performance Index (GMS011)
● JESD204B (subclass 1) encoded digital output
● Power consumption: 1.65 W per channel @ 1 GSPS
● SNR: 65 dBFS @ fin = 170 MHz, -1 dBFS amplitude
● SFDR: 82 dBFS @ fin = 170 MHz, -1 dBFS amplitude
● ENOB: 10.7 bit @ fin = 170 MHz, -1 dBFS amplitude
● Analog input full-power bandwidth (-3 dB): 2 GHz
● Mixed JESD204B Lane configuration, maximum lane rate 10 Gbps

Clock and Trigger
● High-performance clock generator: HMC7044
● On-board 100 MHz local VCXO crystal oscillator
● 1x external reference clock / external VCO clock input
● 1x trigger input signal, LVTTL (+3.3 V) level standard
● 1x trigger output signal, LVTTL (+3.3 V) level standard
Physical and electrical characteristics
● Board size: 84.1 x 69mm
● Typical power consumption: 8W
● Power supply: +12 V (from carrier board)
● Cooling method: natural air convection

Environmental characteristics
● Working temperature: -40 ° C~+85 ° C
● Storage temperature: -55 ° C~+125 ° C
● Working humidity: 5%~95%, non condensing

Product Information

Specifications
What's Inside

Module Features

Module Architecture

Click on the image to view a larger image.

Not all features are available simultaneously – please check the documentation for any applicable constraints.

All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.

ALINX provides product user manuals for each product.

What's Inside the Box

FMC Cards	1

Product Selection Matrix

Product Matrix

Product Model	USD Price
FH9681	5242

FH9681
