AX7450B

AX7450B Dev Board & Kit with AMD Zynq™ 7000 SoC XC7Z100

The AX7450B SoC development board equipped with the AMD Zynq™ 7000 SoC-series device with fast DDR3 SDRAM, eMMC Flash, QSPI Flash, applied to Industrial, Medical, Automotive, Video and Image Processing, Control & Instrumentation and Communication, etc.

Unit price

$ 1083

Overview

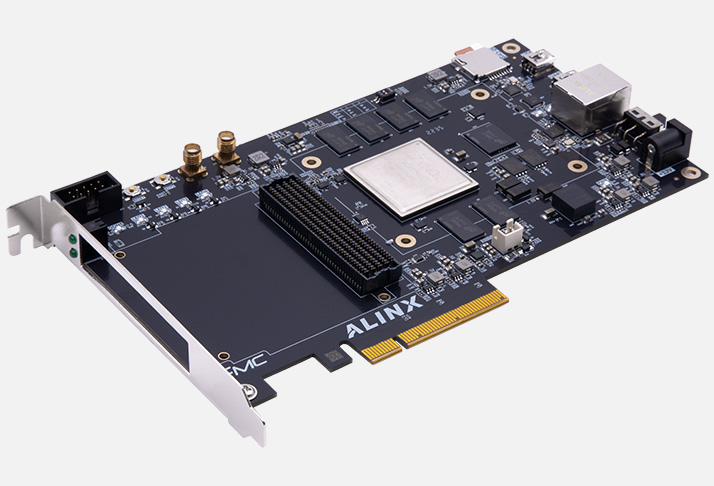

AX7450B Development  Board & Kit with AMD Zynq™ 7000 SoC XC7Z100 7Z100

Product Description

The AX7450B SoC development board equipped with the AMD/Xilinx Zynq™ 7000 SoC-series XC7Z100 device, delivers standout performance with fast DDR3 SDRAM, eMMC Flash, QSPI Flash, PCIe, FMC HPC, Gigabit Ethernet.


Compatible with a multitude of FMC board (data acquisition, motor control, display camera interfaces, software defined radio), provide high-speed communication interface (PCIe).

Applications



Key Features

Product Information

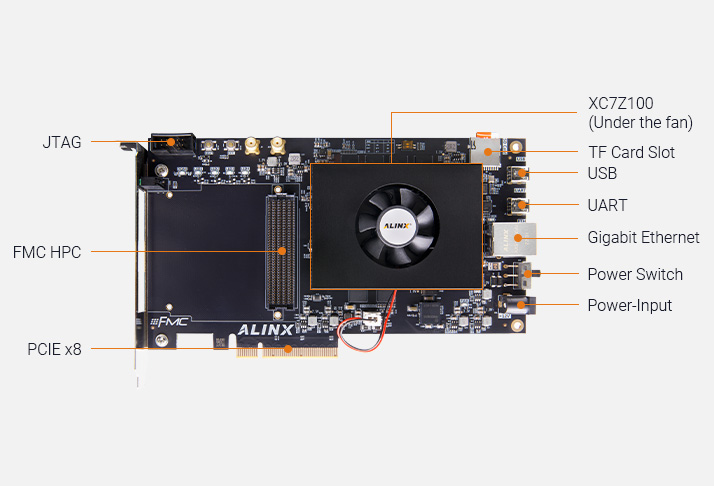

Board Features

Featuring the AMD/Xilinx Zynq™ 7000 SoC XC7Z100-2FFG900I

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any AMD/Xilinx Zynq™ 7000 SoC based application.

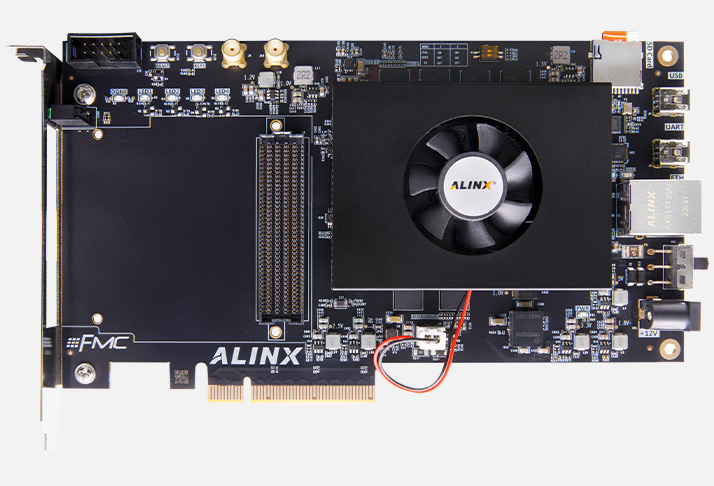

AX7450B Development  Board & Kit with AMD Zynq™ 7000 SoC XC7Z100 7Z100

What's Inside the Box

ALINX AMD Xilinx Zynq™ 7000 SoC XC7Z100 development board and Some accessories

The FAN8060 Heatsink Kit is an optimal cooling solution for FPGA and SoC devices – it is low-profile and covers the whole XC7Z100 device surface.

Development Board1Heatsink Kit (preinstalled)1
Mini USB Cable2USB Downloader Cable / set1
12V Power Adapter1Card Reader1
TF Card1


Product Selection Matrix

Product Matrix

Product ModelPreferred ModelZynq 7000 SoCDDR3 SDRAM (PS)DDR3 SDRAM (PL)QSPI FlasheMMCUSD Price
AX7450BXC7Z100-2FFG900I1 GB2 GB64 MB8GB1083


1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.


We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
