M5EV

M5EV SoM based on AMD Zynq™ US+ MPSoC XCZU5EV

The M5EV module combines AMD Zynq™ UltraScale+™ MPSoC-series device with fast DDR4 SDRAM, eMMC Flash, QSPI Flash, applied to Artificial Intelligence, Computing, Automotive, Industrial, Video, and Communication, etc.

Unit price

$ 753

Overview


Product Description

The M2CG/3EG/4EV/5EV system-on-chip (SoC) system-on-module (SOM) combines high-end AMD/Xilinx Zynq™ UltraScale+™ MPSoC-series device with fast DDR4 SDRAM, eMMC Flash, parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system.

Applications



Key Features

Product Information

Module Features

Featuring the AMD/Xilinx Zynq™ UltraScale+™ MPSoC XCZU5EV-2SFVC784I



* If you want to design a base board based on this Zynq™ UltraScale+™ MPSoC system-on-module, you need to purchase FAN4040 Cooling FAN, the FAN4040 Cooling FAN is an optimal cooling solution for ALINX FPGA and SoC modules – it is low-profile and covers the whole module surface.

What's Inside the Box

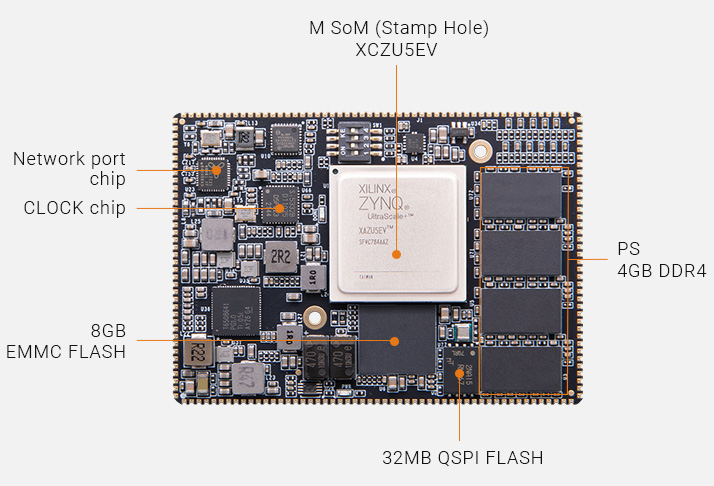

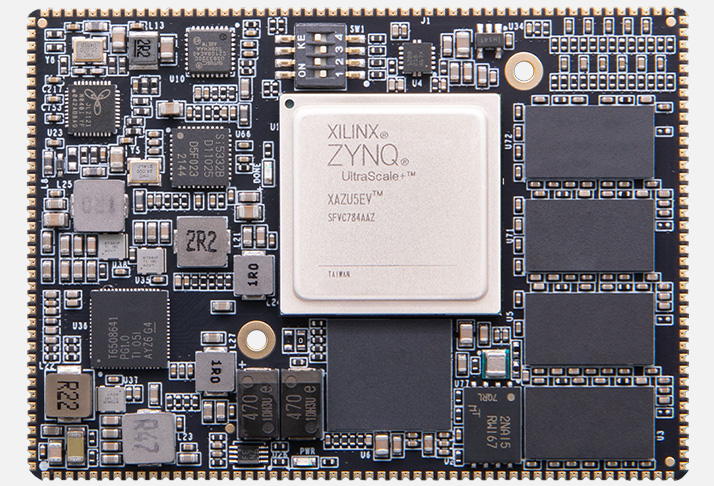

ALINX AMD Xilinx Zynq™ UltraScale+™ MPSoC XCZU5EV system-on-module/SOM

MPSoC SOM1


Product Selection Matrix

Product Matrix

Product ModelPreferred ModelMPSoCDDR4 SDRAM (PS)QSPI FlasheMMCGTR

Temp. Range

USD Price

M2CGXCZU2CG-1SFVC784E4 GB32 MB8GB40°C~+70°C 224
M2EGXCZU2EG-1SFVC784I4 GB32 MB8GB4-40°C~+85°C TBD
M3CGXCZU3CG-1SFVC784I4 GB32 MB8GB4-40°C~+85°C TBD
M3EGXCZU3EG-1SFVC784I4 GB32 MB8GB4-40°C~+85°C 343
M4CGXCZU4CG-1SFVC784I4 GB32 MB8GB4-40°C~+85°C TBD
M4EGXCZU4EG-1SFVC784I4 GB32 MB8GB4-40°C~+85°C TBD
M4EVXCZU4EV-1SFVC784I4 GB32 MB8GB4-40°C~+85°C 528
M5EVXCZU5EV-2SFVC784I4 GB32 MB8GB4-40°C~+85°C 753


1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.


We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.

Documentations

Related Products
