ACU3EG

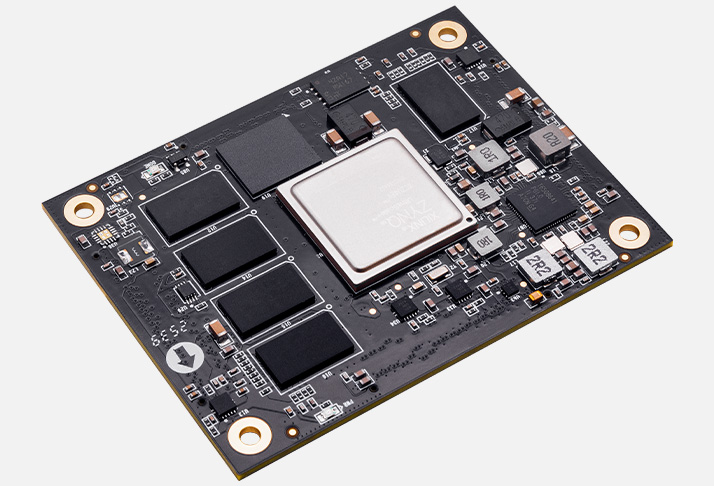

ACU3EG SoM based on AMD Zynq™ US+ MPSoC XCZU3EG

The ACU3EG module combines AMD Zynq™ UltraScale+™ MPSoC-series device with fast DDR4 SDRAM, eMMC Flash, QSPI Flash, applied to Artificial Intelligence, Computing, Automotive, Industrial, Video, and Communication, etc.

Unit price

$ 343

Overview

 ALINX AMD Xilinx Zynq UltraScale+ MPSoC XCZU3EG SoM system-on-module ACU3EG ZU3EG

Product Description

The ACU2CG/3EG/4EV/5EV System-on-Module (SoM) combines high-end AMD/Xilinx Zynq™ UltraScale+™ MPSoC-series device with fast DDR4 SDRAM, eMMC Flash, parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system.

Applications



Key Features

Product Information

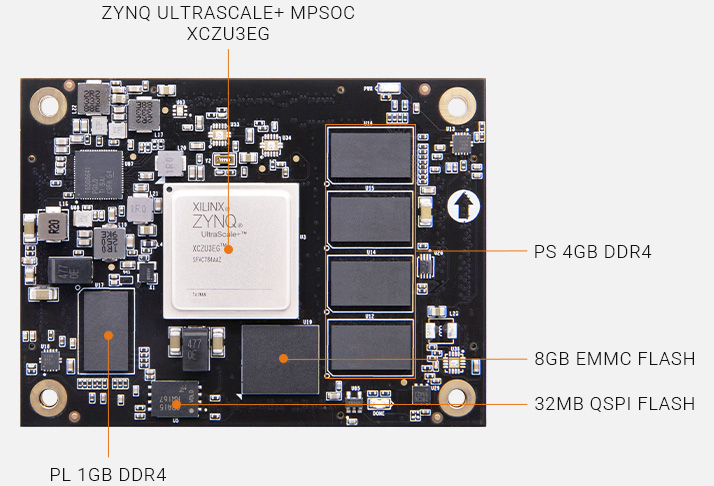

Module Features

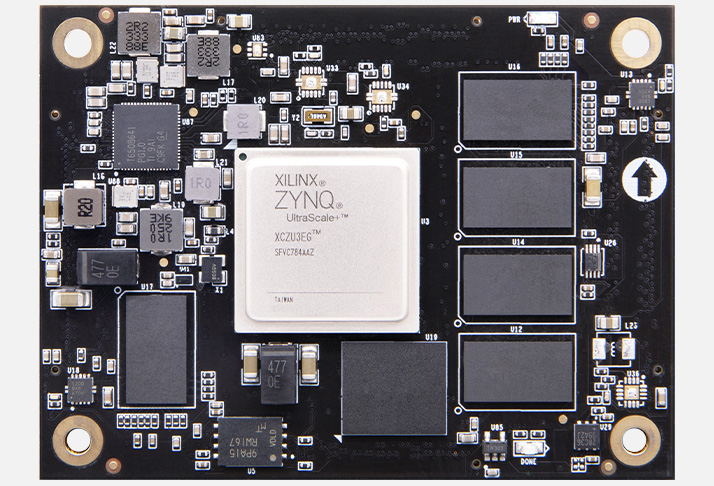

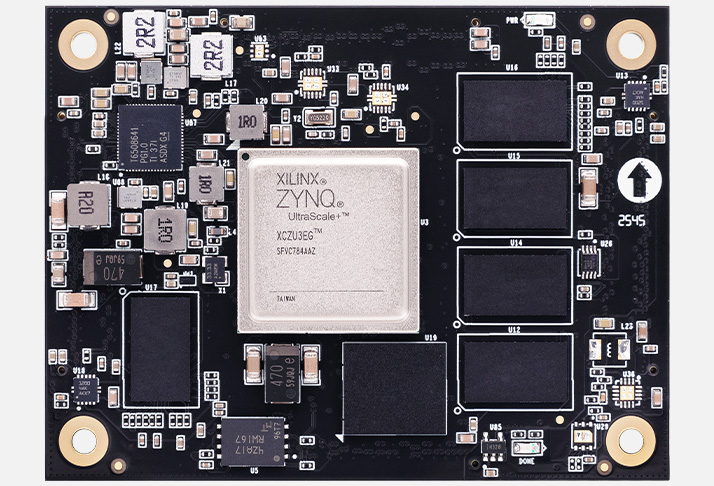

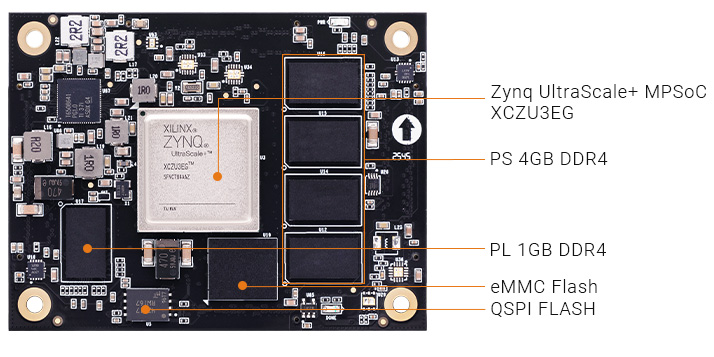

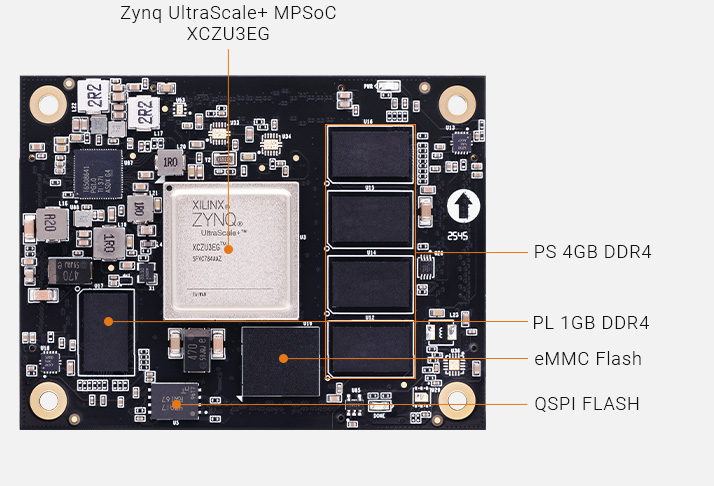

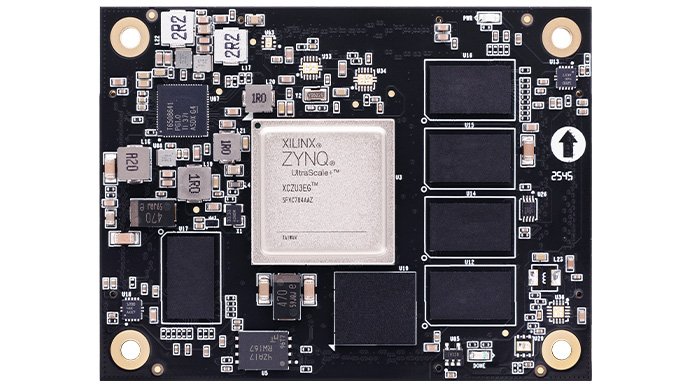

Featuring the AMD/Xilinx Zynq™ UltraScale+™ MPSoC XCZU3EG-1SFVC784I

 ALINX AMD Xilinx Zynq UltraScale+ MPSoC XCZU3EG SoM system-on-module ACU3EG ZU3EG
 ALINX AMD Xilinx Zynq UltraScale+ MPSoC XCZU3EG SoM system-on-module ACU3EG ZU3EG

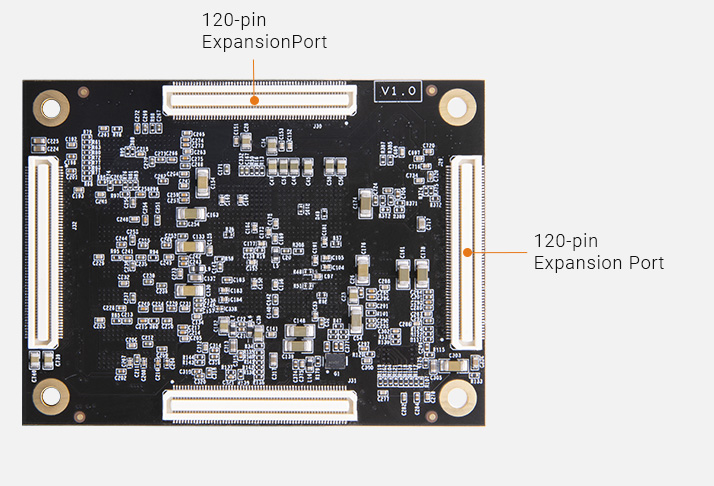

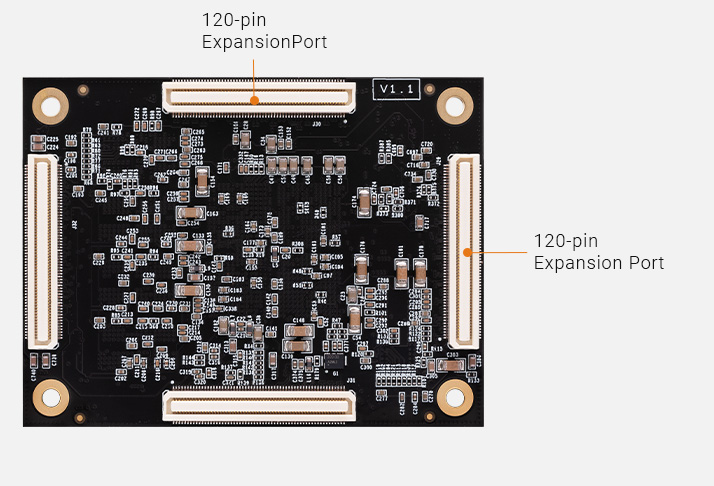

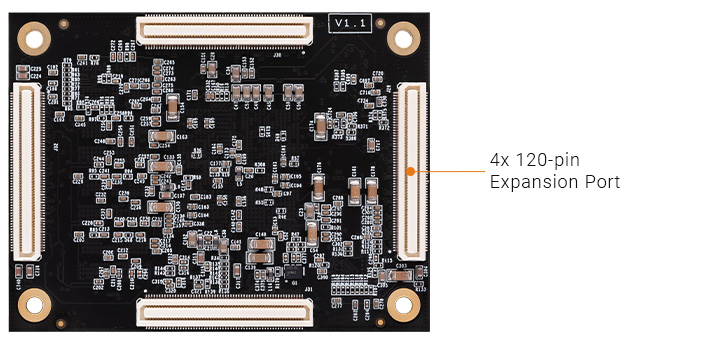

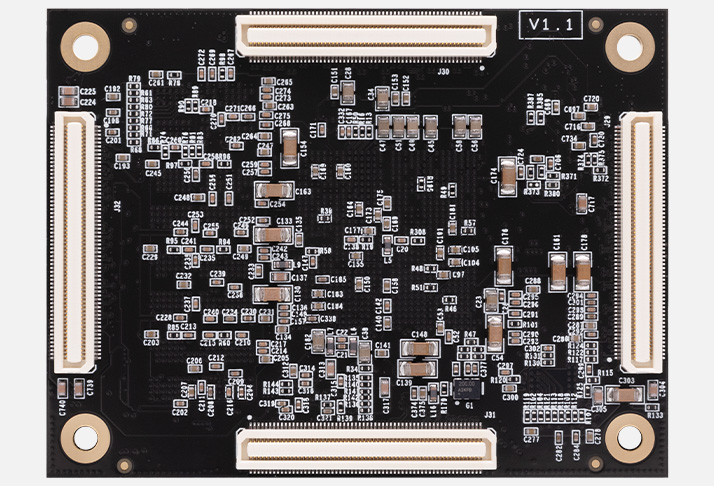

* If you want to design a base board based on this Zynq™ UltraScale+™ MPSoC System-on-Module, you need to purchase AXK6A2337YG high-speed Board to Board Connectors, 120 Pins, you also need to purchase FAN8060 Heatsink Kit, the FAN8060 Heatsink Kit is an optimal cooling solution for ALINX FPGA and SoC modules – it is low-profile and covers the whole module surface.

* We have Zynq™ UltraScale+™ MPSoC development boards AXU3EGB that uses this Zynq™ UltraScale+™ MPSoC module, to get started with development straight out of the box.

Please check the Relevant Products at the bottom of the page and click to learn more details.

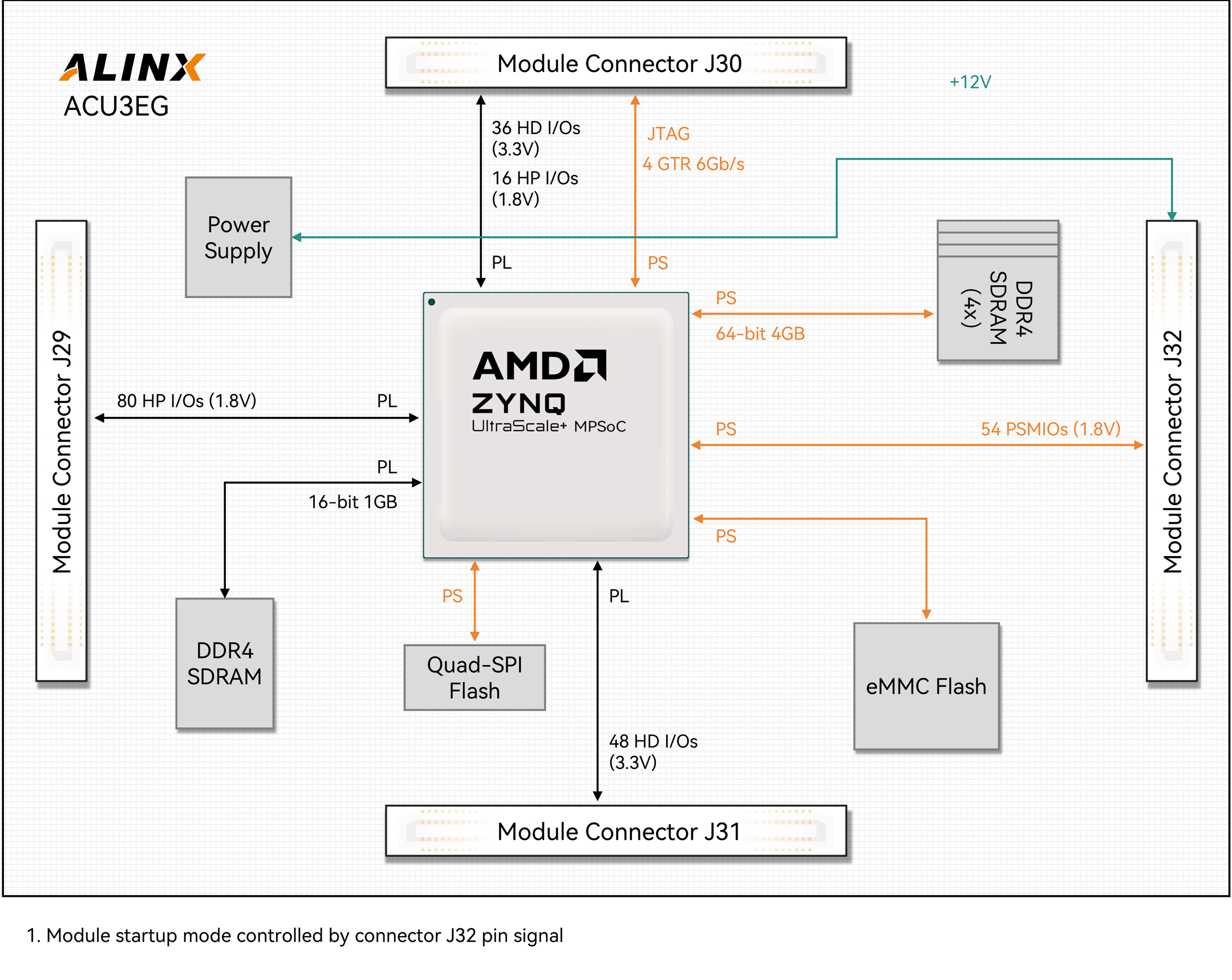

Module Architecture

 ALINX AMD Xilinx Zynq UltraScale+ MPSoC XCZU3EG SoM system-on-module ACU3EG ZU3EG

Click on the image to view a larger image.


Not all features are available simultaneously – please check the documentation for any applicable constraints.

All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.

ALINX provides product user manuals for each product.

What's Inside the Box

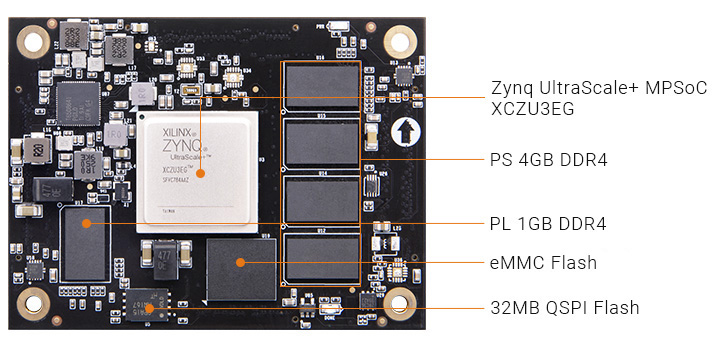

ALINX AMD Xilinx Zynq™ UltraScale+™ MPSoC XCZU3EG System-on-Module/SOM

MPSoC SoM1


Product Selection Matrix

Product Matrix

Product ModelPreferred ModelMPSoCDDR4 SDRAM (PS)DDR4 SDRAM (PL)QSPI FlasheMMCGTR

Temp. Range

USD Price

ACU2CGXCZU2CG-1SFVC784E2 GBN/A32 MB8GB40°C~+70°C224
ACU2EGXCZU2EG-1SFVC784I4 GB1 GB32 MB8GB4-40°C~+85°CTBD
ACU3CGXCZU3CG-1SFVC784I4 GB1 GB32 MB8GB4-40°C~+85°CTBD
ACU3EGXCZU3EG-1SFVC784I4 GB1 GB32 MB8GB4-40°C~+85°C343
ACU4CGXCZU4CG-1SFVC784I4 GB1 GB32 MB8GB4-40°C~+85°CTBD
ACU4EGXCZU4EG-1SFVC784I4 GB1 GB32 MB8GB4-40°C~+85°CTBD
ACU4EVXCZU4EV-1SFVC784I4 GB1 GB32 MB8GB4-40°C~+85°C528
ACU5EVXCZU5EV-2SFVC784I4 GB1 GB32 MB8GB4-40°C~+85°C660


1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.


We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
