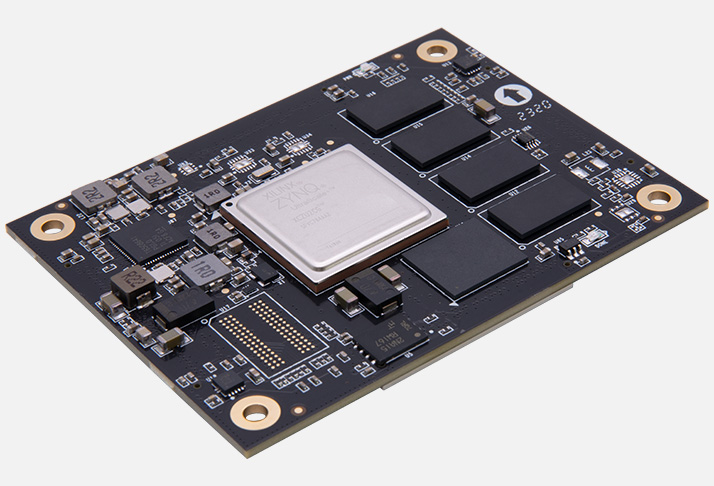

ALINX AMD Xilinx Zynq UltraScale+ MPSoC XCZU2CG SoM system-on-module

Overview

Product Description

The ACU2CG/3EG/4EV/5EV system-on-chip (SoC) system-on-module (SOM) combines high-end AMD/Xilinx Zynq™ UltraScale+™ MPSoC-series device with fast DDR4 SDRAM, eMMC flash, parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system.

Applications

● Artificial Intelligence
● AV Broadcasting
● Industrial Internet of Thing
● Digital Signal Processing
● Drive / Motion Control
● Machine Vision
● Medical Endoscop
● Video and Image Processing

Key Features

● AMD/Xilinx Zynq™ Ultrascale+™ MPSoC:
◆ ARM® quad-core Cortex™-A53 up to 1.3 GHz
◆ ARM® dual-core Cortex™-R5 up to 533 MHz
◆ Mali-400MP2 GPU (only for ZU3/4/5)
◆ H.264 / H.265 Video Codec (only for EV devices)

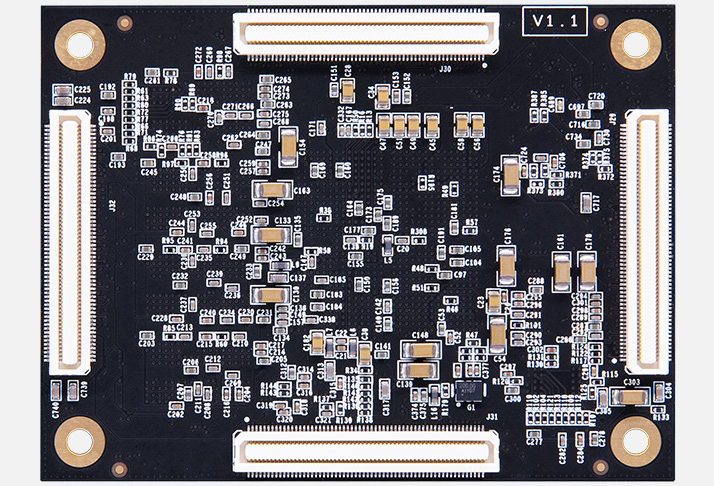

◆ 16nm FinFET+ FPGA fabric● Pluggable module with 4 x Panasonic board-to-board connectors
● 4 GByte (64-bit) DDR4 SDRAM on PS (2 GByte for ACU2CG)
● 1 GByte (16-bit) DDR4 SDRAM on PL (only for ZU3/4/5)
● 32 MB QSPI Flash
● 8 GB eMMC Flash
● 2 x PCIe® Gen3 ×8 (PL, only for ZU4/5), PCIe® Gen2 ×4 (PS)
● Gigabit transceivers
◆ 4 x GTR, up to 6.6 Gbps
◆ 4 x GTH, up to 12.5 Gbps (only for ZU4/5)● User I/Os
◆ 54 PS MIOs
◆ 180 FPGA I/Os (84 HD + 96 HP)● Work temperature range of -40°C to +85°C (only for ZU3/4/5)
● 12V single supply
● Dimensions: 80 x 60 mm form factor

Product Information

Specifications
What's Inside

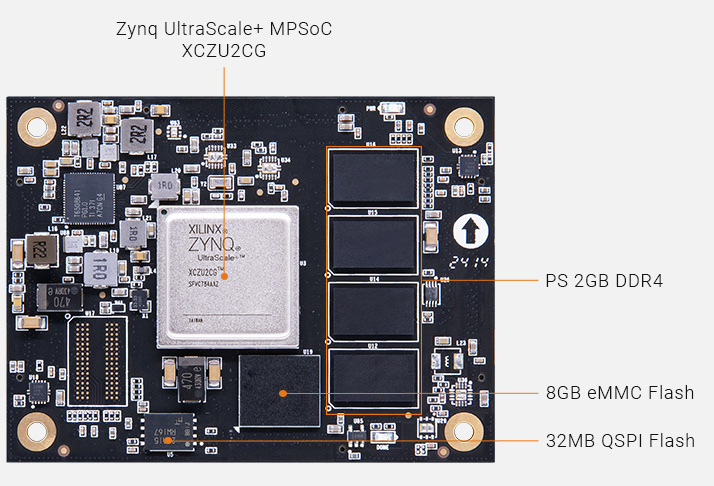

Module Features

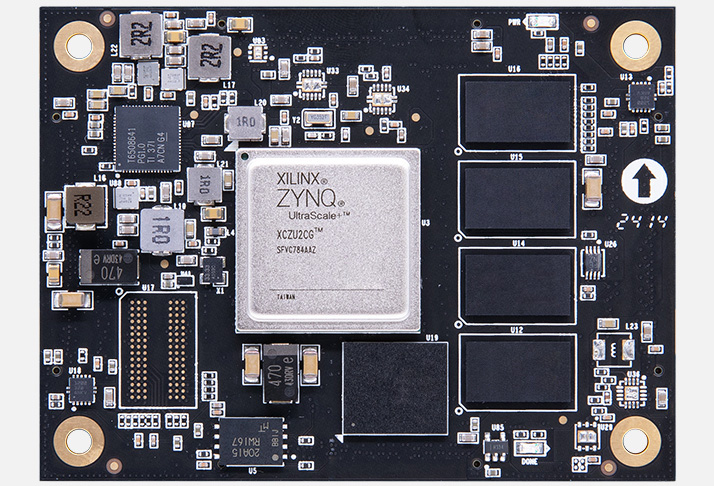

Featuring the AMD/Xilinx Zynq™ UltraScale+™ MPSoC XCZU2CG-1SFVC784E

* If you want to design a base board based on this Zynq™ UltraScale+™ MPSoC system-on-module, you need to purchase AXK6A2337YG high-speed Board to Board Connectors, 120 Pins, you also need to purchase FAN8060 Heatsink Kit, the FAN8060 Heatsink Kit is an optimal cooling solution for ALINX FPGA and SoC modules – it is low-profile and covers the whole module surface.

* We have Zynq™ UltraScale+™ MPSoC development boards that uses this Zynq™ UltraScale+™ MPSoC module, to get started with development straight out of the box.

Please check the Relevant Products at the bottom of the page and click to learn more details.

Module Architecture

Click on the image to view a larger image.

Not all features are available simultaneously – please check the documentation for any applicable constraints.

All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.

ALINX provides product user manuals for each product.

What's Inside the Box

ALINX AMD Xilinx Zynq™ UltraScale+™ MPSoC XCZU2CG system-on-module/SOM

MPSoC SOM	1

Product Selection Matrix

Product Matrix

Product Model	Preferred Model	MPSoC	DDR4 SDRAM (PS)	DDR4 SDRAM (PL)	QSPI Flash	eMMC	GTR	Temp. Range	USD Price
ACU2CG	√	XCZU2CG-1SFVC784E	2 GB	N/A	32 MB	8GB	4	0°C~+70°C	224
ACU2EG		XCZU2EG-1SFVC784I	4 GB	1 GB	32 MB	8GB	4	-40°C~+85°C	TBD
ACU3CG		XCZU3CG-1SFVC784I	4 GB	1 GB	32 MB	8GB	4	-40°C~+85°C	TBD
ACU3EG	√	XCZU3EG-1SFVC784I	4 GB	1 GB	32 MB	8GB	4	-40°C~+85°C	343
ACU4CG		XCZU4CG-1SFVC784I	4 GB	1 GB	32 MB	8GB	4	-40°C~+85°C	TBD
ACU4EG		XCZU4EG-1SFVC784I	4 GB	1 GB	32 MB	8GB	4	-40°C~+85°C	TBD
ACU4EV	√	XCZU4EV-1SFVC784I	4 GB	1 GB	32 MB	8GB	4	-40°C~+85°C	528
ACU5EV	√	XCZU5EV-2SFVC784I	4 GB	1 GB	32 MB	8GB	4	-40°C~+85°C	660

1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
