AC7Z100C

AC7Z100C SoM based on AMD Zynq™ 7000 SoC XC7Z100

The AC7Z100C SoC module combines AMD Zynq™ 7000 SoC-series device with fast DDR3 SDRAM, eMMC Flash, QSPI Flash, applied to Industrial, Medical, Automotive, Video and Image Processing, Control & Instrumentation and Communication, etc.

Unit price

$ 726

Overview

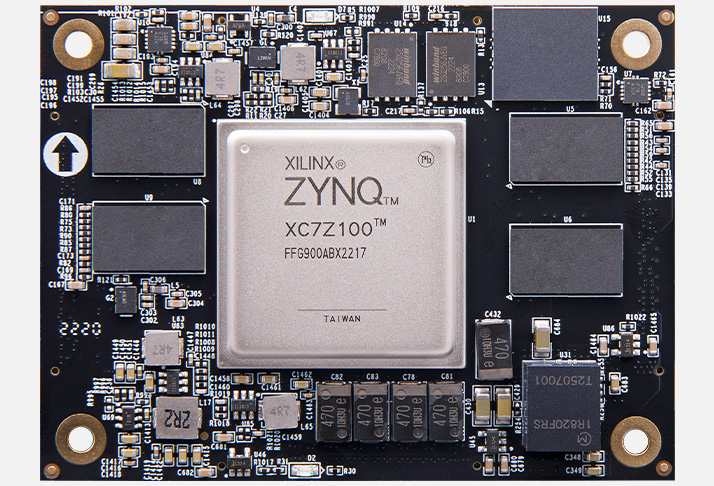

ALINX AMD Xilinx Zynq 7000 SoC XC7Z100 SoM system-on-module AC7Z100C 7Z100

Product Description

The AC7Z035B/AC7Z100C System-on-Chip (SoC) System-on-Module (SoM) combines high-end AMD/Xilinx Zynq™ 7000 SoC-series device with fast DDR3 SDRAM, eMMC Flash, parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system. This module is suitable for high-speed applications due to the high number of transceivers.

Applications



Key Features

Product Information

Module Features

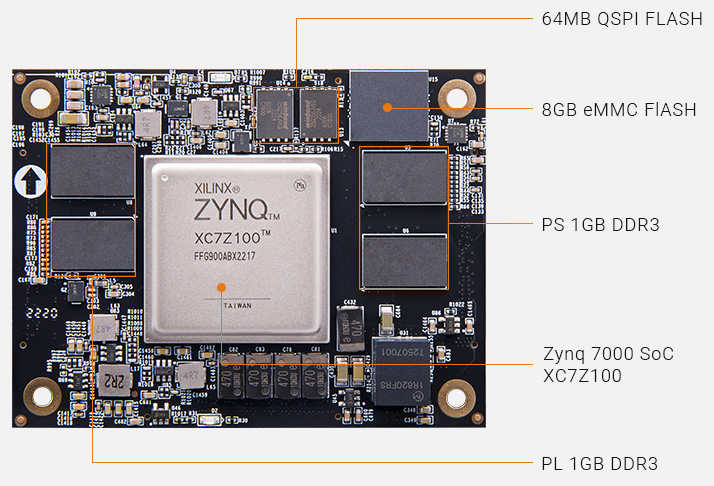

Featuring the AMD/Xilinx Zynq™ 7000 SoC XC7Z100-2FFG900I

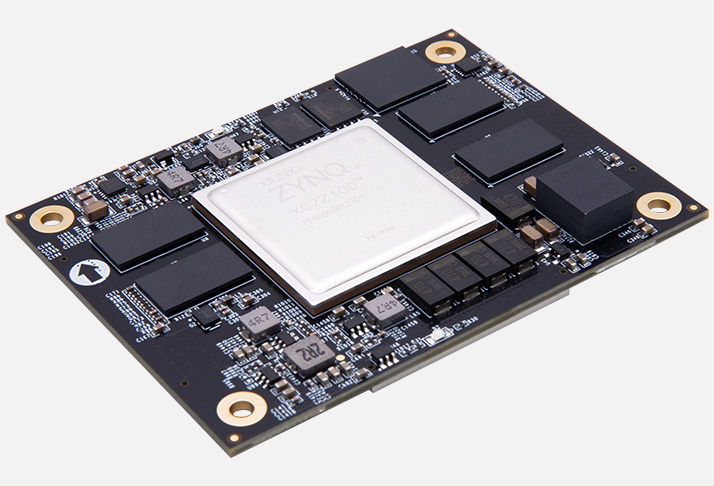

ALINX AMD Xilinx Zynq 7000 SoC XC7Z100 SoM system-on-module AC7Z100C 7Z100
ALINX AMD Xilinx Zynq 7000 SoC XC7Z100 SoM system-on-module AC7Z100C 7Z100

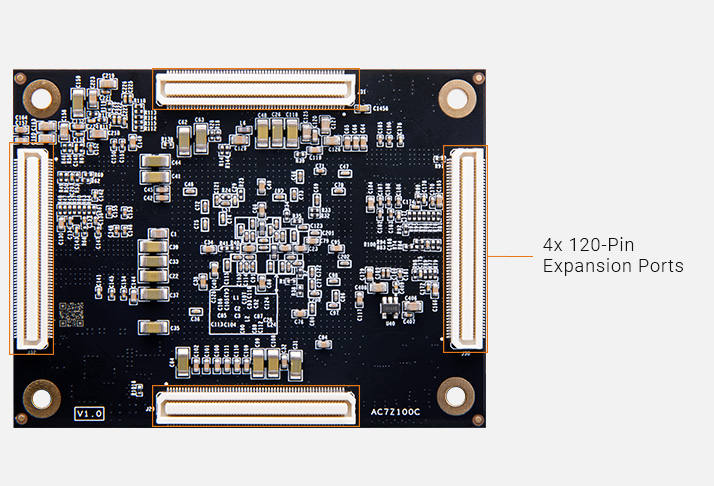

* If you want to design a base board based on this Zynq™ 7000 SoC system-on-module, you need to purchase AXK6A2337YG high-speed Board to Board Connectors, 120 Pins, you also need to purchase FAN8060 Heatsink Kit, the FAN8060 Heatsink Kit is an optimal cooling solution for ALINX FPGA and SoC modules – it is low-profile and covers the whole module surface.

* We have Zynq™ 7000 SoC development boards AX7Z100B that uses this Zynq™ 7000 SoC module, to get started with development straight out of the box.

Please check the Relevant Products at the bottom of the page and click to learn more details.

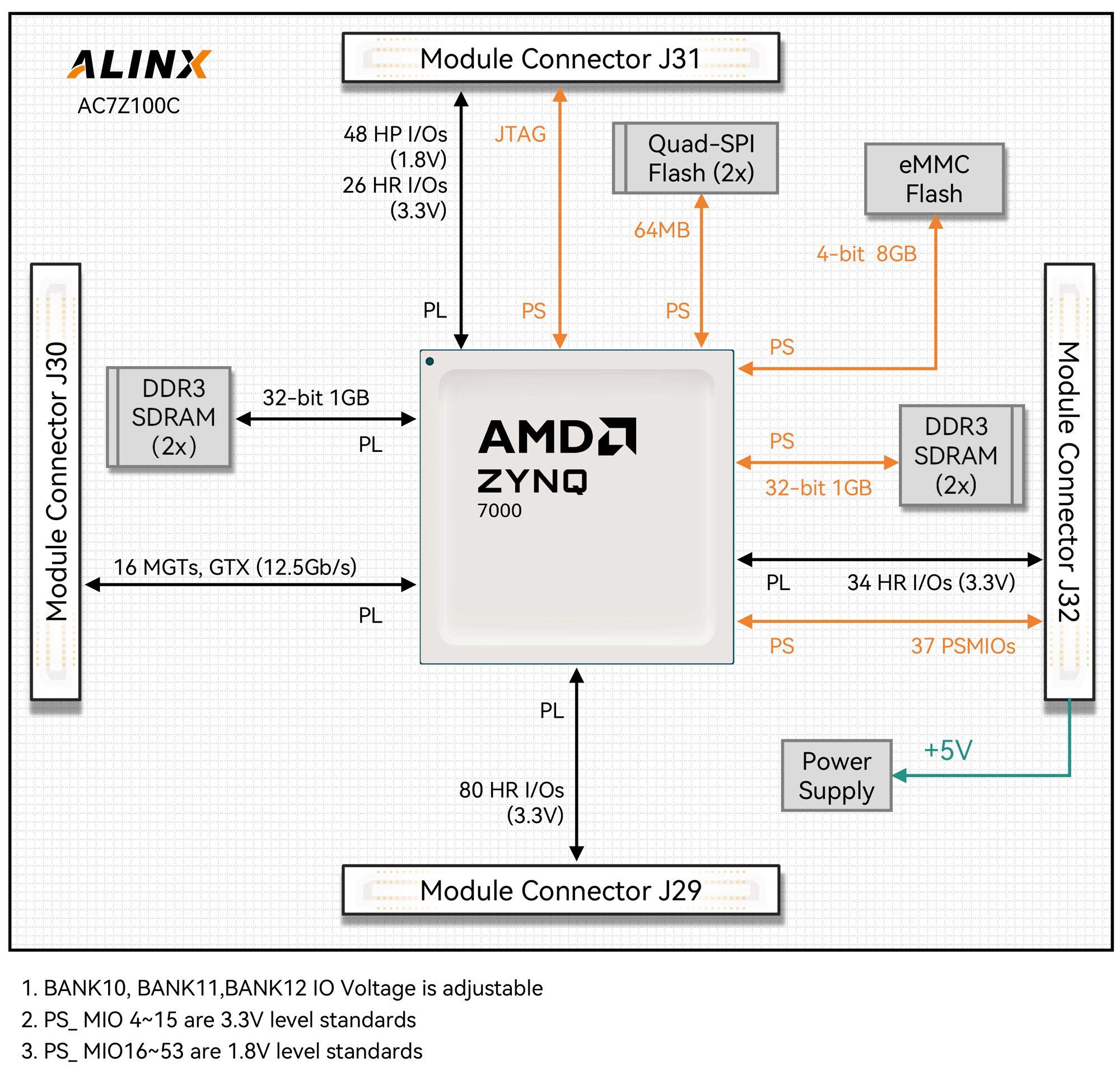

Module Architecture

ALINX AMD Xilinx Zynq 7000 SoC XC7Z100 SoM system-on-module AC7Z100C 7Z100

Click on the image to view a larger image.


Not all features are available simultaneously – please check the documentation for any applicable constraints.

All specifications are subject to change without notice. Please verify component specifications with vendor's datasheets.

ALINX provides product user manuals for each product.


What's Inside the Box

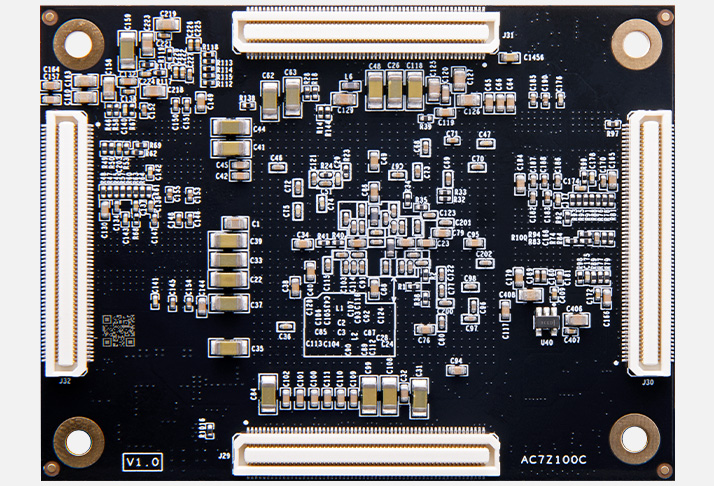

ALINX AMD Xilinx Zynq™ 7000 SoC XC7Z100 System-on-Module/SOM

Zynq 7000 SoC SoM1


Product Selection Matrix

Product Matrix

Product ModelPreferred ModelZynq 7000 SoCDDR3 SDRAM (PS)DDR3 SDRAM (PL)QSPI FlasheMMCGTX

Temp. Range

USD Price

AC7Z100CXC7Z100-2FFG900I1 GB1 GB64 MB8GB16-40°C~+85°C726
AC7Z045XC7Z045-2FFG676I1 GB1 GB64 MB8GB8-40°C~+85°CTBD
AC7Z035B

XC7Z035-2FFG676I

1 GB1 GB64 MB8GB8-40°C~+85°C462
AC7Z030XC7Z030-2FFG676I1 GB1 GB64 MB8GB8-40°C~+85°CTBD


1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.


We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.

Documentations
