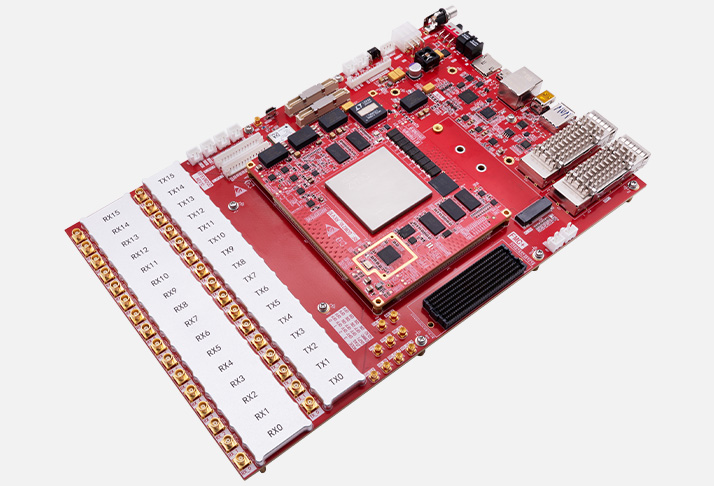

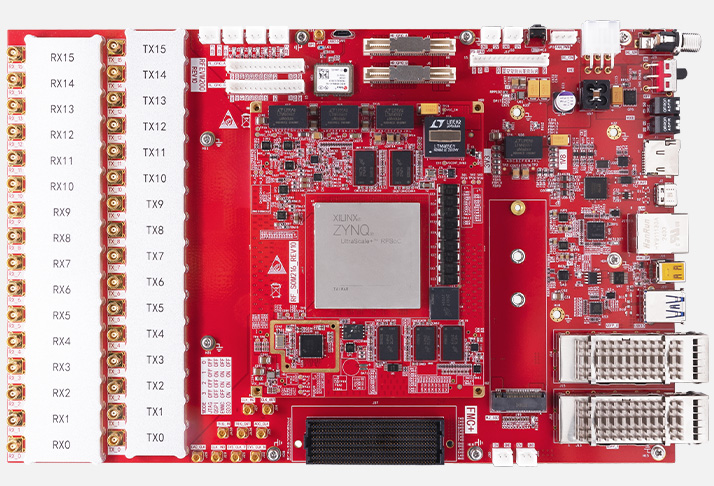

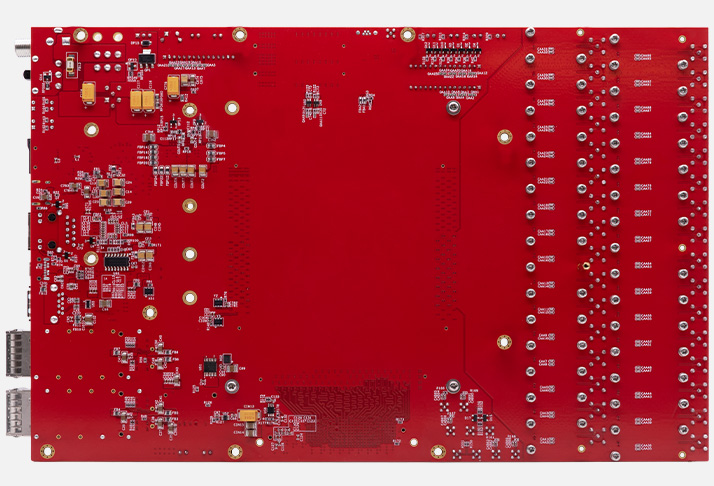

The AXRF49 development kit comprises the ACRF49 SoM and the RFEVM200 base board, linked by a 56Gbps high-speed connector. The ACRF49 SoM features Xilinx's Zynq UltraScale+ RFSoC Gen3 XCZU49DR FPGA as its main chip, supporting 16-channel 14-bit RF-ADC with a maximum sampling rate of 2.5GSPS. And it includes a 16-channel 14-bit RF-DAC with a maximum sampling rate of 9.84GSPS.
Unit price
$ 20582In stock:
＞9, ready to ship in 2 workdays

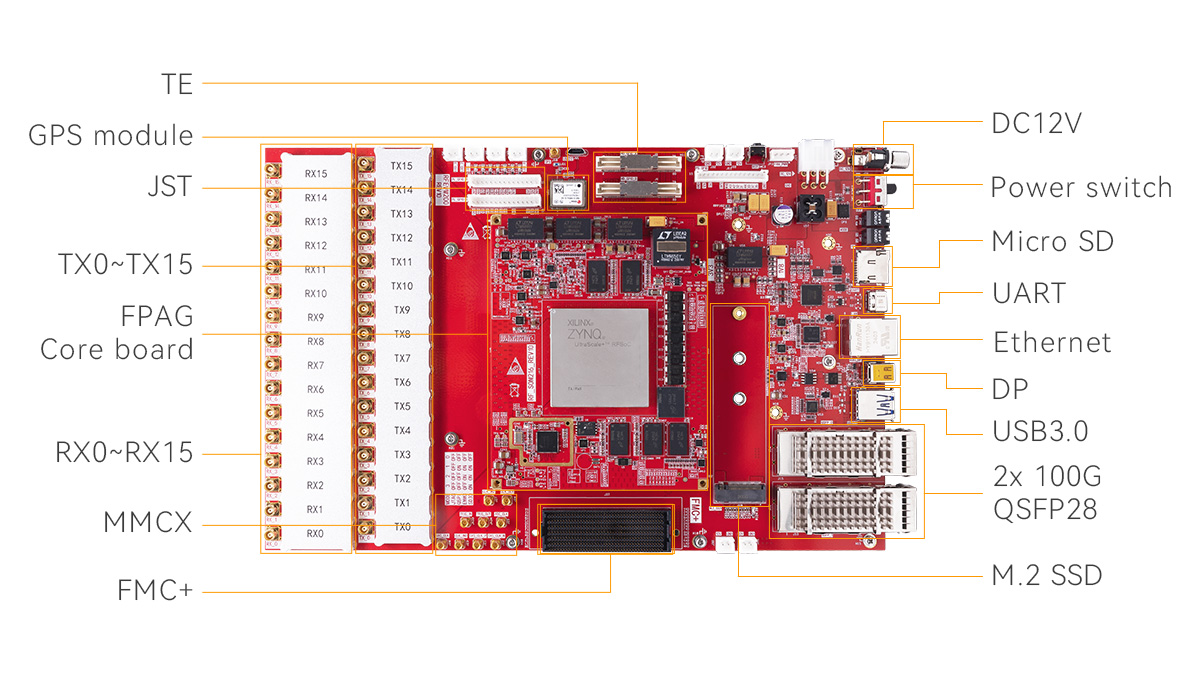

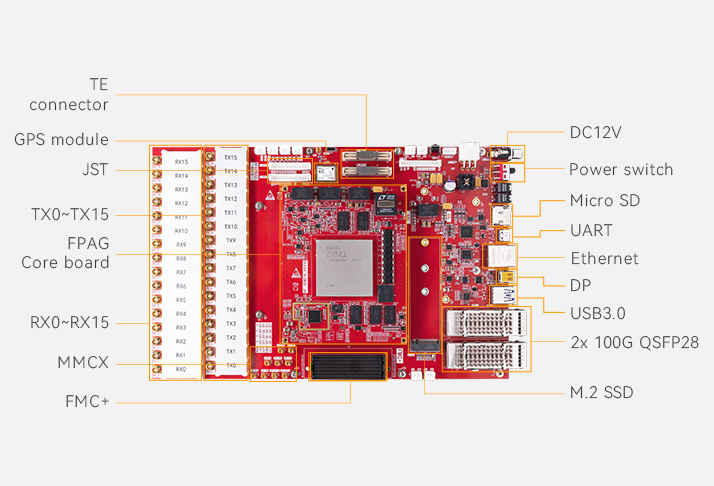

The AXRF49 development kit comprises the ACRF49 SoM and the base board, linked by high-speed connectors (32Gbps per channel). The ACRF49 SoM features Xilinx's Zynq UltraScale+ RFSoC Gen3 XCZU49DR FPGA, supporting 16-channel 14-bit RF-ADC (2.5GSPS max) and 16-channel 14-bit RF-DAC (9.85GSPS max). This integration simplifies the RF signal chain, maximizes I/O density without sacrificing bandwidth, leverages heterogeneous processing, and reduces power consumption. Connectors extend RF-ADC/RF-DAC interfaces, clocks, MIO, GTY transceivers, and support configurable IO voltages on specific banks.
Supporting 5G baseband, cable TV access, and wireless communication applications; test and measurement, radar/early warning systems, satellite positioning, and other high-performance RF scenarios.
● Wireless access
● Cable TV access
● Test and measurement
● Early warning/radar
● Other high-performance RF applications
Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any AMD/Xilinx Zynq™ UltraScale+™ RFSoC based application.
* The AXRF49 development board consists of a ACRF49 SoM and base board. If you want to purchase ACRF49 SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.

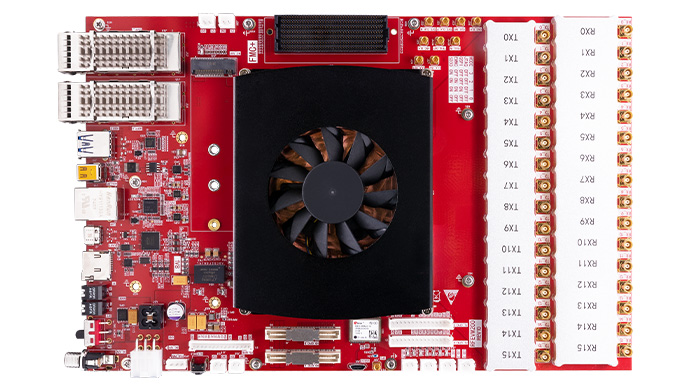

Heatsink Kit is an optimal cooling solution for ALINX FPGA and SoC modules – it is low-profile and covers the whole module surface.
| System-on-Module | 1 | Base Board | 1 |
|---|---|---|---|
| SMA cable | 8 | MCX-SMA RF cable | 16 |
| MMCX-SMA RF cable | 4 | 12V power supply | 1 |
| power line | 1 | USB3.0-cable | 1 |
| Network cable | 1 | TF card | 1 |
| card reader | 1 | CD materials | 1 |
| Product Model | Device Series | FPGA Devices | DDR4 SDRAM (PS) | DDR4 SDRAM (PL) | QSPI Flash | RF-ADC | RF-DAC | USD Price | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AXRF49 | Zynq UltraScale+ RFSoC Gen3 | XCZU49DR | 5 GB ECC | 5 GB | 128 MB | 16-channel | 16-channel | 20582 |
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
