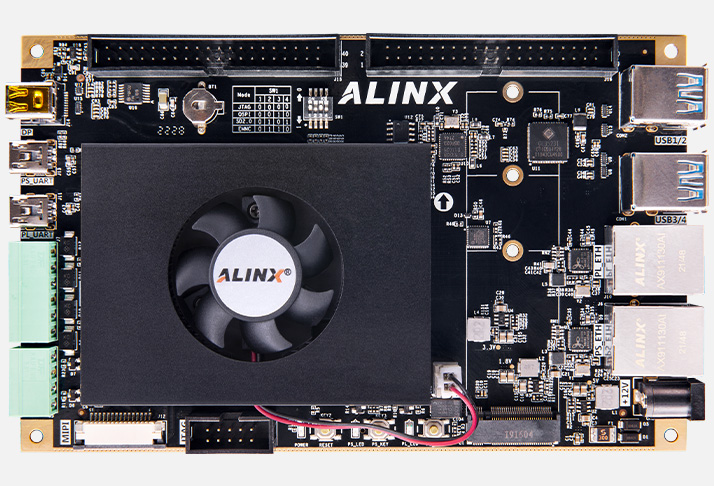

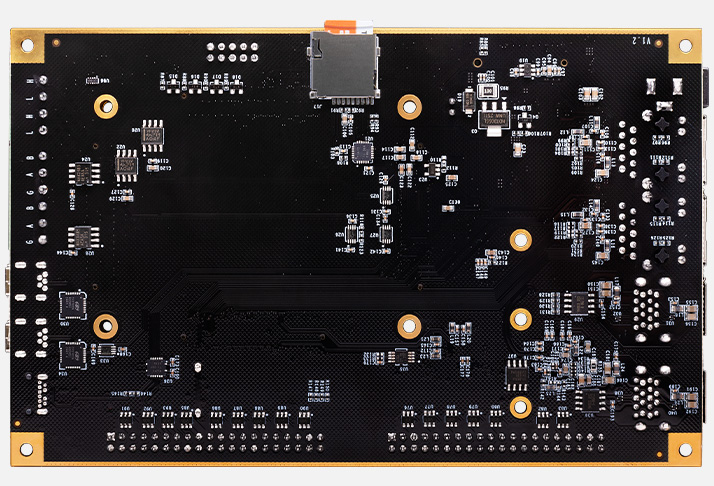

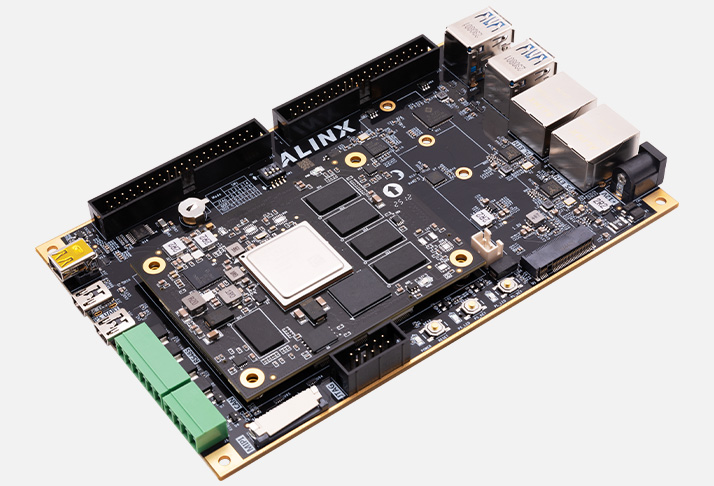

ALINX AMD Xilinx Zynq UltraScale+ MPSoC XCZU2CG Development Board / Evaluation Kit

Overview

Product Description

The AXU2CGB-I development board equipped with the AMD/Xilinx Zynq™ UltraScale+™ MPSoC-series device, delivers standout performance with fast DDR4 SDRAM, eMMC Flash, QSPI Flash, DP, M.2, USB 3.0, CAN, RS485, MIPI, UART.

Provide high-speed storage (M.2) and video applications (DP).

Applications

● Artificial Intelligence
● Automotive
● AV Broadcasting
● Deep learning
● Digital Signal Processing
● 5G Wireless and Wire Communication
● Data Centers
● Drive / Motion Control
● Industrial Internet of Thing
● Cloud Computing Security
● Machine Vision
● Medical Endoscop
● Video and Image Processing

Key Features

System-on-Module
● AMD/Xilinx Zynq™ Ultrascale+™ MPSoC:
◆ ARM® dual-core Cortex™-A53 up to 1.2 GHz
◆ ARM® dual-core Cortex™-R5F up to 533 MHz
◆ 16nm FinFET+ FPGA fabric
● Pluggable module with 4 x Panasonic board-to-board connectors
● 4GByte DDR4 SDRAM on PS
● 1GByte DDR4 SDRAM on PL
● 32MB QSPI Flash
● 32GB eMMC Flash

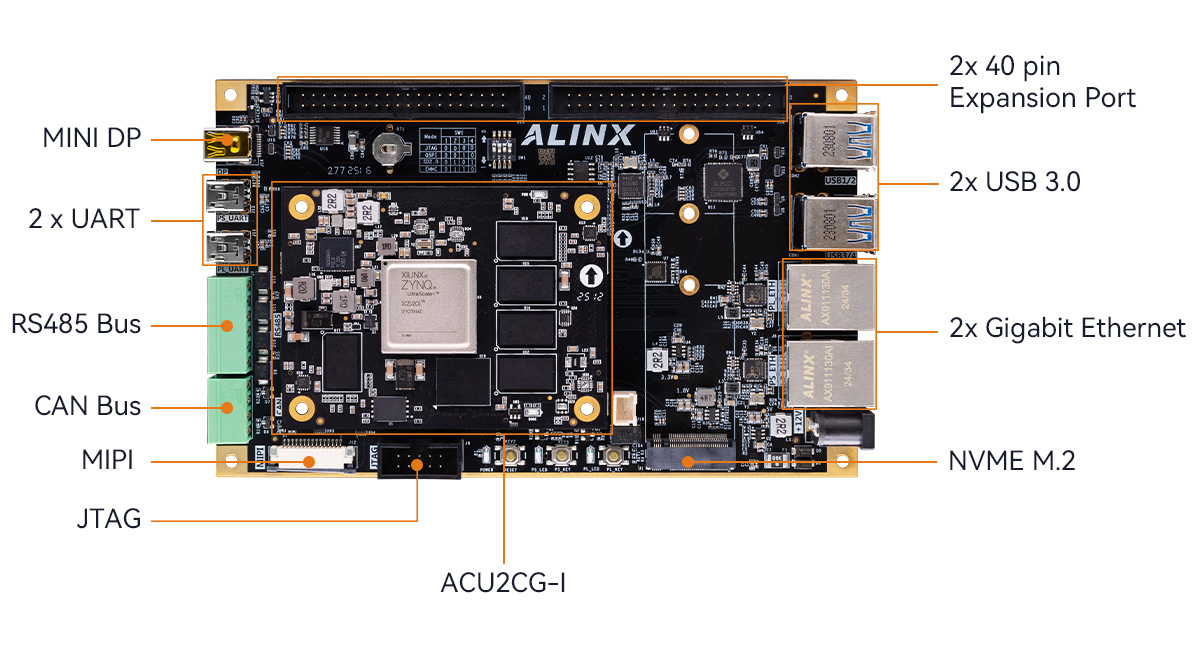

Base Board
● 1 x M.2 Card slot on PS
● 1 x DP Interface on PS
● 1 x 2 lane MIPI on PL
● 2 x CAN on ps
● 2 x RS485 on PL
● 2 x USB3.0 on PS + 2 x USB2.0 on PS
● EEPROM: 4-Kbit I2C Serial EEPROM + 1 x Temperature sensor (LM75)
● 2 x Gigabit Ethernet (1 x PS + 1 x PL)
● 2 x UART (1 x PS + 1 x PL) (USB to UART)
● 1 x Micro SD
● 1 x RTC (Real-time clock)
● 2 x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
● LED (1 x pwr + 1 x PL + 1 x PS) + KEY (1 x RST + 1 x PS + 1 x PL)
● 12V single supply
● Dimensions: 160 x 100 mm form factor

Product Information

Specifications
What's Inside

Development Board Features

Featuring the AMD/Xilinx's Zynq™ UltraScale+™ MPSoC XCZU2CG-1SFVC784I Adaptive SoC

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any AMD/Xilinx Zynq™ UltraScale+™ MPSoC based application.

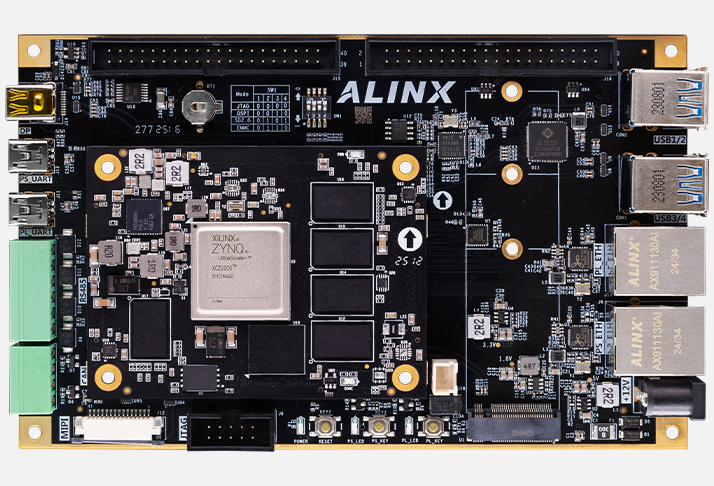

* The AXU2CGB-E development board consists of a ACU2CG-I SoM and base board. If you want to purchase ACU2CG-I SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

ALINX AMD Xilinx Zynq™ UltraScale+™ MPSoC XCZU2CG development board and Some accessories

The FAN8060 Heatsink Kit is an optimal cooling solution for ALINX FPGA and SoC modules – it is low-profile and covers the whole module surface.

System-on-Module	1	Base Board	1
Heatsink Kit (preinstalled)	1	USB Downloader Cable / set	1 Set
12V Power Adapter	1	Acrylic board	1
Mini USB Cable	1	Card Reader	1
TF Card	1

Product Selection Matrix

Product Matrix

Product Model	Preferred Model	MPSoC	DDR4 ECC SDRAM (PS)	DDR4 SDRAM (PL)	QSPI Flash	eMMC Flash	GTR	USD Price
AXU2CGB-I	√	XCZU2CG-1SFVC784I	4 GB	1 GB	32 MB	32 GB	4	431
AXU2CGB-E	√	XCZU2CG-1SFVC784E	2 GB	N/A	32 MB	8 GB	4	361
AXU3EGB	√	XCZU3EG-1SFVC784I	4 GB	1 GB	32 MB	32 GB	4	473
AXU4EVB-E	√	XCZU4EV-1SFVC784I	4 GB	1 GB	32 MB	32 GB	4	793
AXU5EVB-E	√	XCZU5EV-2SFVC784I	4 GB	1 GB	32 MB	32 GB	4	973

1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.

We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
