ALINX AVP50G FPGA Development Board with Pango Logos PGL50G

Overview

Product Description

The AVP50G FPGA Development Board is PANGO Logos series device, delivers standout performance with DDR3 SDRAM, QSPI Flash, HDMI, Gigabit Ethernet.

Applications

● Communication
● Industrial control

Key Features

System-on-Module
● PANGO Logos PGL50G:◆ 40 nm FPGA fabric
● Pluggable module with 2 x Panasonic board-to-board connectors
● 256 MByte (16-bit) DDR3 SDRAM
● 8 MB QSPI Flash

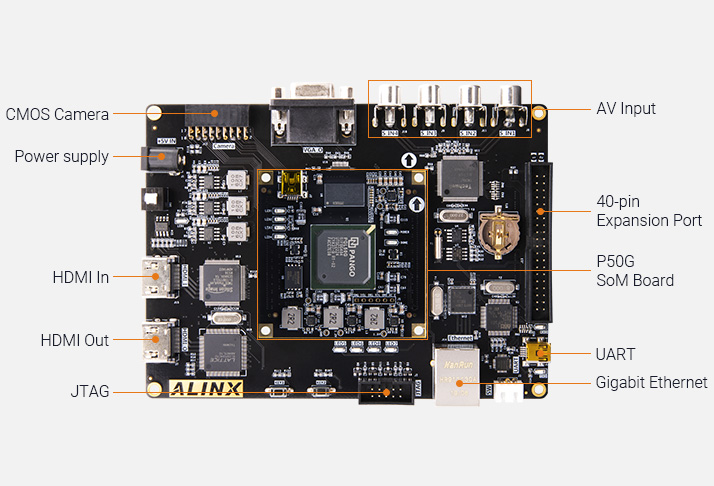

Base Board
● 1 x Gigabit Ethernet
● 2 x HDMI (HDMI in + HDMI out)
● 1 x VGA
● 4 x Video input interface
● 1 x JTAG
● 1 x ARM(STM32F103)
● 1 x Camera link
● KEY ( 2 x KEY)
● 1 x 40-pin Expansion Port (40 pin 2.54mm spacing, with 34 IOs, connected to ALINX modules such as binocular cameras, TFT LCD screens, high-speed AD modules, etc.)
● LED(1 x PWR + 4 x LED) + KEY (1 x reset + 2 x KEY)
● 5V single supply
● Dimensions: 150 x 110 mm form factor

Product Information

Specifications
What's Inside

Development Board Features

Featuring the PANGO Logos PGL50G-6IFBG484 Adaptive

Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX development board help shorten time-to-market for any PANGO Logos based application.

* The AXP110 development board consists of a P50G SoM and base board. If you want to purchase P50G SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

ALINX PANGO Logos PGL50G development board and Some accessories

System-on-Module	1	Base Board	1
Mini USB Cable	1	USB Downloader Cable / set	1
5V Power Adapter	1	Acrylic Plate	1

Product Selection Matrix

Product Matrix

Product Model	Preferred Model	FPGA Devices	DDR3 ECC SDRAM	QSPI Flash	USD Price
AVP50G	√	PGL50G-6IFBG484	256MB	8 MB	264

1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.

We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
