AC7200

AC7200 FPGA SoM with AMD Artix™ 7 XC7A200T

The AC7200 System-on-Module(SoM) combines high-end AMD Artix-7 series device with fast DDR3 SDRAM, parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system. This module is suitable for high-speed applications due to the high number of transceivers.

Unit price

$ 238

Overview

ALINX AMD Xilinx Artix 7 XC7A200T SoM system-on-module AC7200 7A200T

Product Description

The AC7100B/AC7200 FPGA System-on-Module(SoM) combines high-end AMD Xilinx Artix-7 series device with fast DDR3 SDRAM, parallel Quad-SPI Flash and thus forms a complete and powerful embedded processing system. This module is suitable for high-speed applications due to the high number of transceivers.

Applications



Key Features

Product Information

Module Features

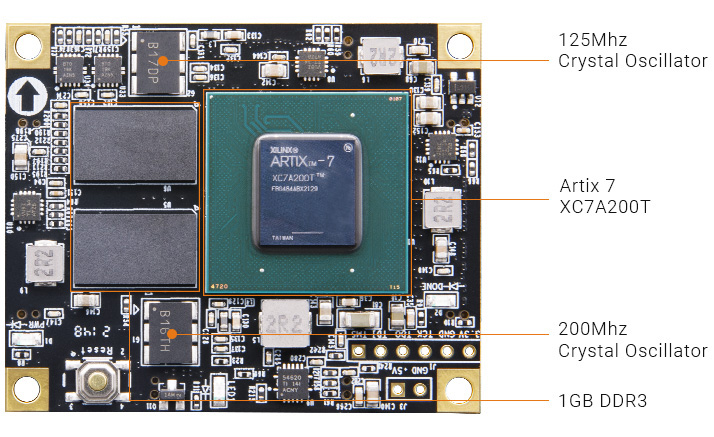

Featuring the AMD/Xilinx Artix 7 XC7A200T-2FBG484I

ALINX AMD Xilinx Artix 7 XC7A200T SoM system-on-module AC7200 7A200T
ALINX AMD Xilinx Artix 7 XC7A200T SoM system-on-module AC7200 7A200T

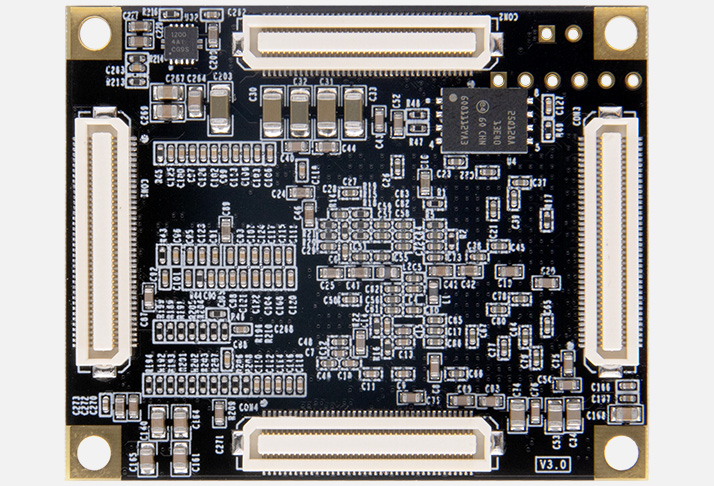

* If you want to design a base board based on this Artix 7 System-on-Module, you need to purchase AXK680337YG high-speed Board to Board Connectors, 80 Pins.

* We have Artix 7 development boards AX7201AX7202 and AX7203 that uses this Artix 7 module, to get started with development straight out of the box.

Please check the Relevant Products at the bottom of the page and click to learn more details.

What's Inside the Box

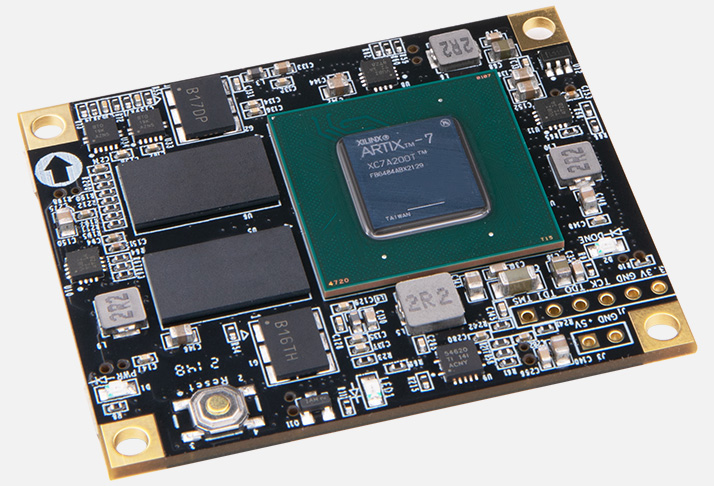

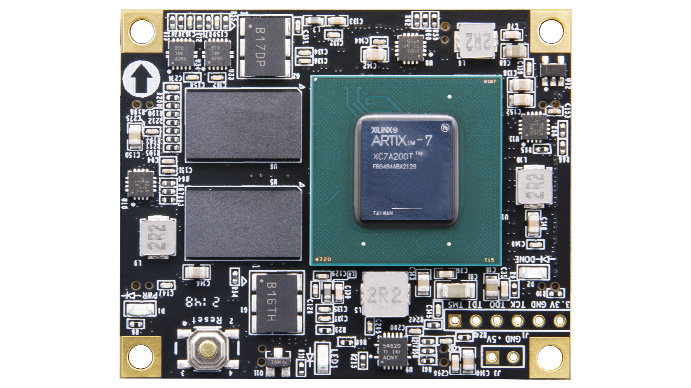

ALINX AMD Xilinx Artix 7 XC7A200T System-on-Module/SoM

Artix 7 SoM1


Product Selection Matrix

Product Matrix

Product ModelPreferred ModelFPGA DevicesDDR3 SDRAMQSPI FlashGTP

Temp. Range

USD Price

AC7035 XC7A35T-2FGG484I1 GB16 MB4-40°C~+85°CTBD
AC7050XC7A50T-2FGG484I1 GB16 MB4-40°C~+85°CTBD
AC7075 XC7A75T-2FGG484I1 GB16 MB4-40°C~+85°CTBD
AC7100BXC7A100T-2FGG484I1 GB16 MB4-40°C~+85°C185
AC7200XC7A200T-2FBG484I1 GB16 MB4-40°C~+85°C238


1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.


We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
