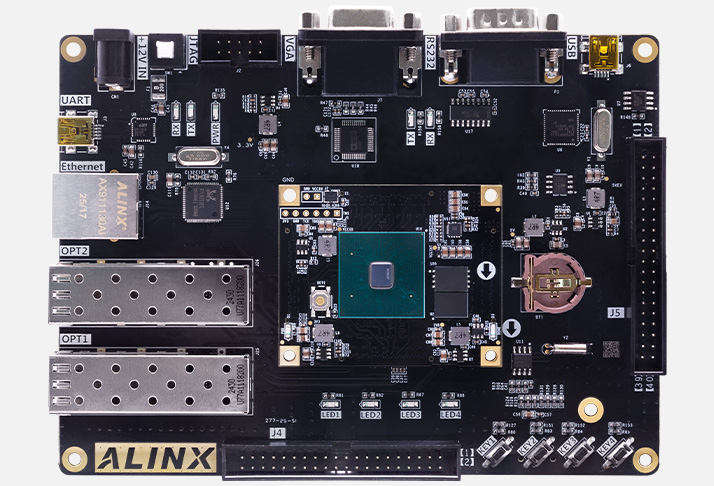

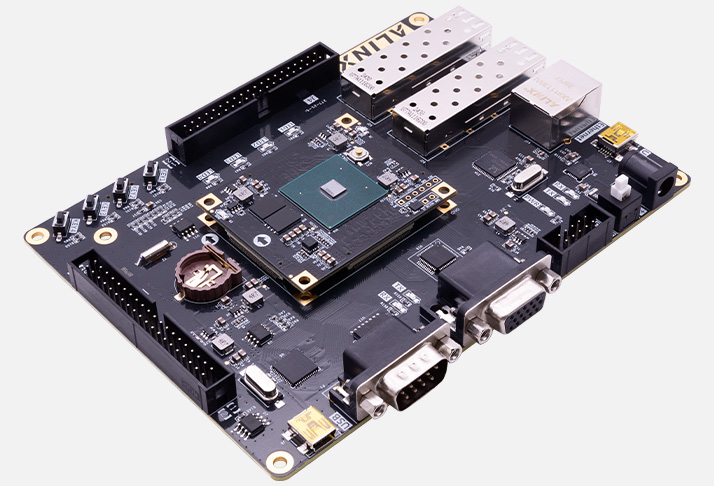

The AXSU35 FPGA development board equipped with the AMD Spartan™ UltraScale+™ series device, delivers standout performance with DDR4 SDRAM, QSPI Flash, PCIe, FMC HPC, Gigabit Ethernet.
Unit price
$ 359In stock:
＞9, ready to ship in 2 workdays

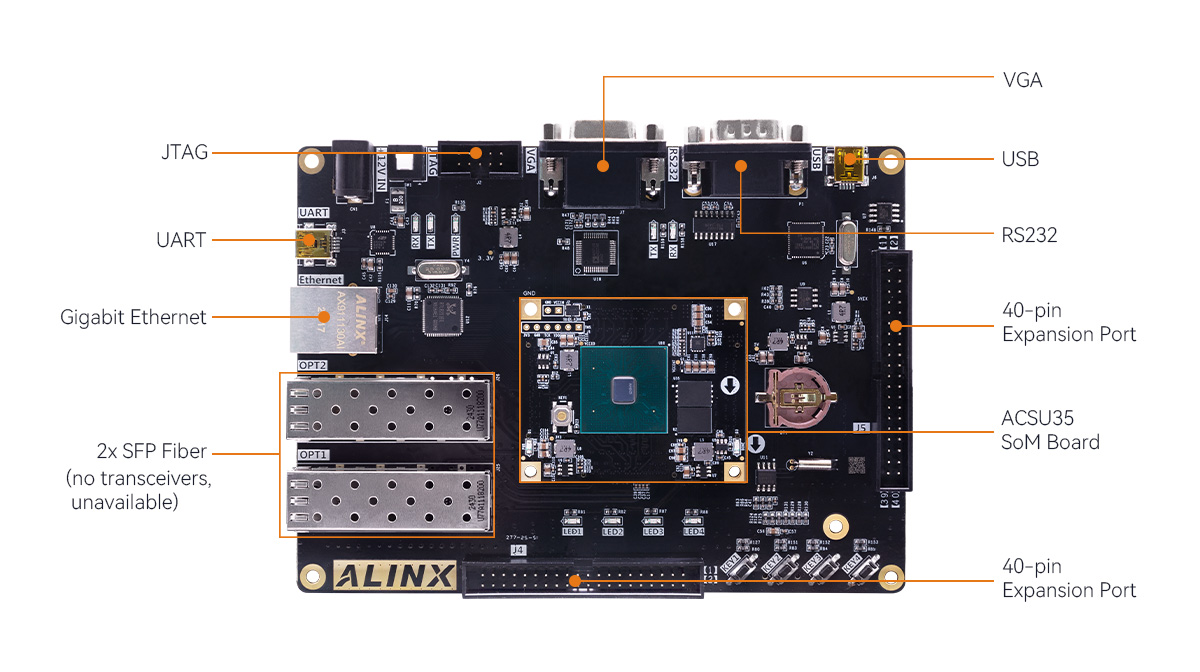

AXSU35 Development Board AMD Spartan UltraScale+ FPGA, core + base board. HYPERRAM, QSPI Flash, 246 I/Os. Interfaces: GbE, USB 2.0, VGA, SD slot, 40-pin headers. Industrial grade. Ideal for prototyping.
● Factory Automation
● Robotics
● IIoT Gateways and Edge Applications
● Smart Cities and Smart Grids
● Intelligent Patient Monitors
● Robot-assisted Surgery
● 4G and 5G Wireless Infrastructure
● Board Controllers
● Network Access and Connectivity
● Board Management Controllers
● Hyperscale Storage
Design-in Kit – The Fast Way to the Market, to get started with development straight out of the box.
The ALINX FPGA development board help shorten time-to-market for any AMD Spartan UltraScale+ based application.
* The AXSU35 development board consists of a ACSU35 SoM and base board. If you want to purchase ACSU35 SoM separately.
Please check the Relevant Products at the bottom of the page and click to learn more details.
| System-on-Module | 1 | Base Board | 1 |
|---|---|---|---|
| Mini USB Cable | 1 | USB Downloader Cable / set | 1 |
| 12V Power Adapter | 1 | Acrylic board | 1 |
| Heatsink | 1 |
| Product Model | Preferred Model | FPGA Devices | HYPERRAM | QSPI Flash | USD Price | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AXSU35 | √ | XCSU35P-2SBVB625I | 64Mbit | 128Mbit | 359 |
1. For non-preferred models, a minimum order quantity (MOQ) may apply if the products are not in stock.
2. We offer custom configuration, a MOQ applies.
Please contact us for more details.
We offer complete documentations and a lot of demos and tutorials.
Please contact us should you have any need.
