AN5640

AN5640 5MP Camera Module OV5640

Use on SoC & FPGA development boards

Unit price

$ 29

Overview


Product Description

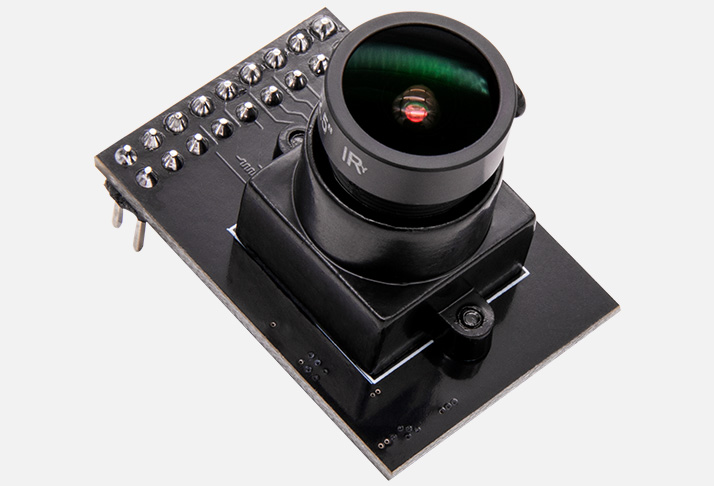

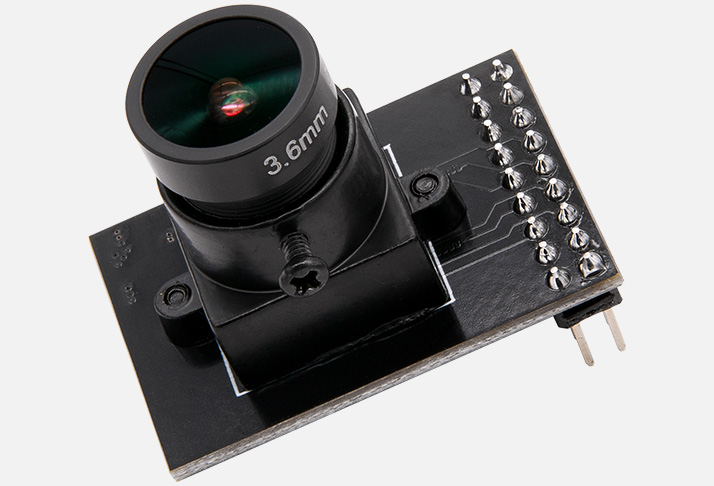

The AN5640 camera module adopts the OmniVisionCMOS chip image sensor OV5640, which supports autofocus function. The OV5640 chip supports DVP and MIPI interfaces, and the OV5640 camera module achieves image transmission through DVP interface and FPGA connection.

Product Information

Parameter Description

  • ● Photosensitive chip: OV5640
    ● Sensitivity size: 1/4 "
    ● Pixel: hardware pixel 500W
    ● Image format: RAW RGB, RGB565/555/444,CCIR656, YUV422/420, YCbCr422 and compression
    ● Capture images: QSXGA(2592x1944), 1080p, 1280x960, VGA(640x480), QVGA(320x240))

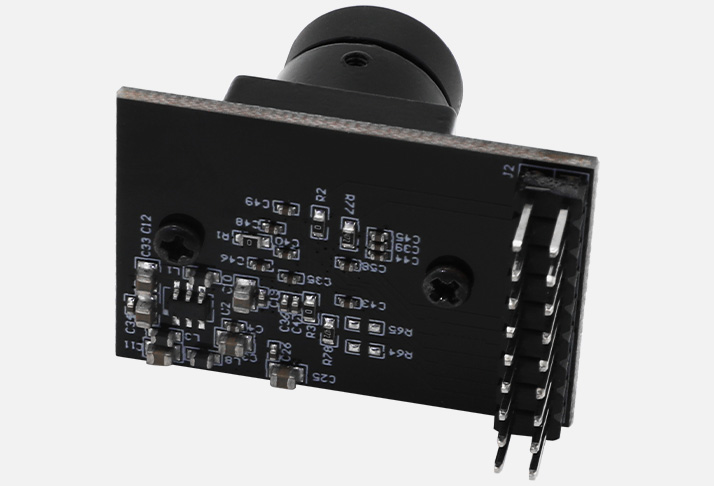

    ● Module content: including OV5640 power circuit and flash drive circuit
  • ● Function support: manual focusing, automatic exposure control (AEC), automatic white balance (AWB
    ● Interface: DVP
    ● Working temperature: -30~70 ℃, stable working temperature is 0~50 ℃
    ● Dimensions: 35 x 24 mm form factor

What's Inside the Box

AN56401


Product Selection Matrix

Product Matrix

Product Model

USD Price

AN564029
