AN5020

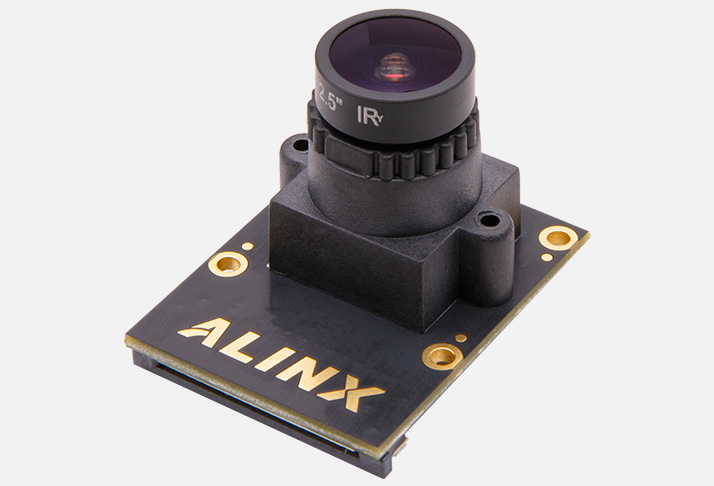

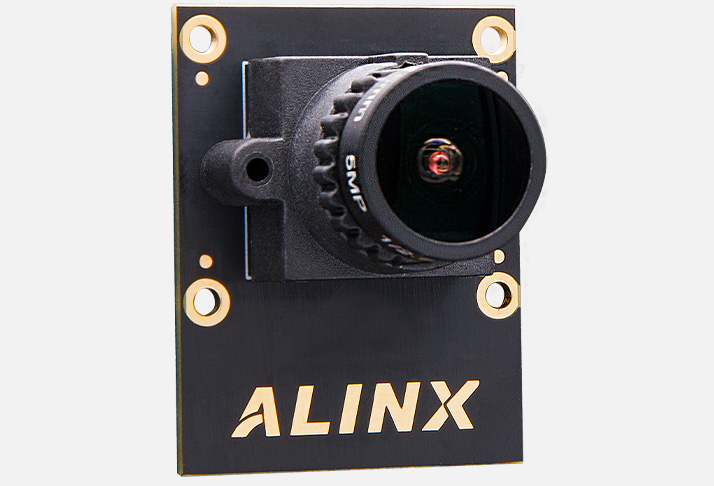

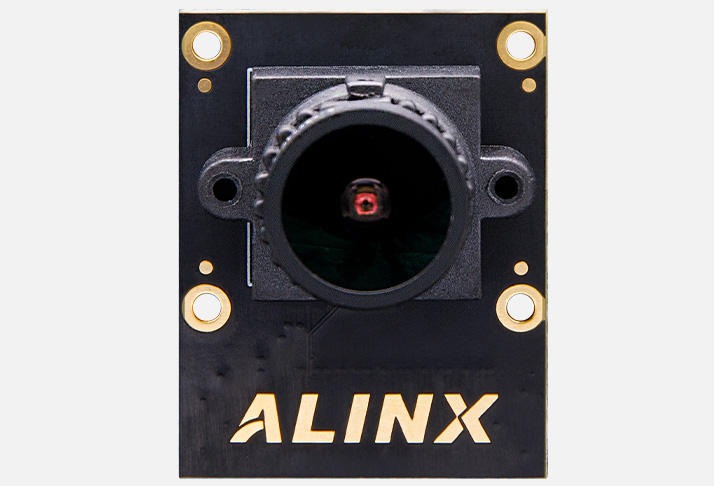

AN5020 5MP 4LANE MIPI Camera OS05A2 Module

Use on SoC & FPGA development boards

Unit price

$ 29
Order Contact

Overview


Product Description

The AN5020 camera module uses the OmniVision CMOS chip image sensor OS05A20. Supports MIPI * 4LANE interface, which enables image processing on the AN5020 module through MIPI * 4LANE interface and FPGA connection Transmission.

Product Information

Parameter Description

  • ● Photosensitive chip: OS05A20
    ● Sensitivity size: 1/2.7 "
    ● Supported pixels: 2688x1944, 1080p (1920x1080), 720p (1280x720)
    ● Image format: 12-/10 bit RAW RGB
    ● Capture images: QSXGA (2592x1944), 1080p, 1280x960, VGA (640x480), QVGA (320x240)

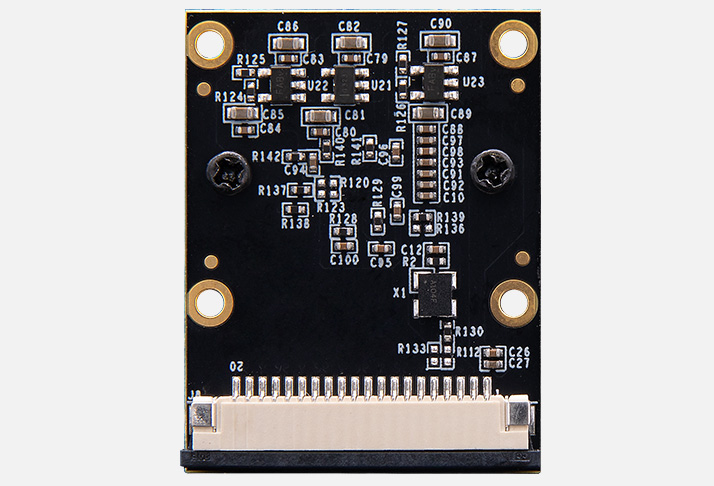

    ● Module content: including OS05A20 power circuit and clock
  • ● Function support: manual focusing, automatic exposure control (AEC), automatic white balance (AWB)
    ● Interface: FPC interface with a 20pin spacing of 1.0mm, MIPI interface communication with 4LANE
    ● Working temperature: -30~85 ℃, stable working temperature is 0~60 ℃
    ● Dimensions: 35 x 27 mm form factor

What's Inside the Box

AN50201


Product Selection Matrix

Product Matrix

Product Model

USD Price

AN502029

Documentations
